Delta Electronics MEA-090A Series Medical AC-DC Adapter
The Delta MEA-090A series is a medical AC-DC desktop adapter family with a universal 90–264Vac input range. It is available in 12Vdc, 15Vdc, 19Vdc and 24Vdc single-output models with rated output current up to 6.75A and output power from 81W to 90W. The Delta MEA-090A features include DOE VI and ErP Lot 7 efficiency compliance, 2 × MOPP isolatio...
Read MoreThe Delta MEA-090A series is a medical AC-DC desktop adapter family with a universal 90–264Vac input range. It is available in 12Vdc, 15Vdc, 19Vdc and 24Vdc single-output models with rated output current up to 6.75A and output power from 81W to 90W.
The Delta MEA-090A features include DOE VI and ErP Lot 7 efficiency compliance, 2 × MOPP isolation, low touch current, IEC 60320 C14 input socket, IP22 protection, green LED indication and fanless operation. The family supports output connector options including 5.5 × 2.5 × 11 mm tuning fork plugs in 90° or 180° formats and 4-pin DIN versions depending on model code.
Show Lessor send a quick enquiry about this product only
Features
- Input voltage range: 90–264Vac universal input.
- Output voltage: available in 12Vdc, 15Vdc, 19Vdc and 24Vdc variants.
- Output current: up to 6.75A, 6.0A, 4.74A or 3.75A depending on model.
- Output power: 81W for the 12V model and 90W for 15V, 19V and 24V models.
- Meet Efficiency Level DOE VI and ErP Lot 7.
- 2 × MOPP isolation.
- Low touch current: <0.1mA normal and 0.3mA single fault.
- IEC 60320 C14 input socket.
- Green LED indication.
- IP22 protection.
- Fanless operation.
- Connector options in family: 5.5 x 2.5 x 11 mm tuning fork 90°, 4 Pin DIN 180°, and 5.5 x 2.5 x 11 mm tuning fork 180° depending on model code.
Specifications
| INPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63 Hz |
| Input Current (max.) | 1.5 A @ 115 Vac, 0.75 A @ 230 Vac |
| Average Efficiency (min.) @ 115 Vac | MEA-090A12C: 88% MEA-090A15C / 19C / 24C: 89% |
| Average Efficiency (min.) @ 230 Vac | 89% (all models) |
| Efficiency @ 10% Load | 79% |
| Standby Power (max.) | 0.15 W @ 115 Vac & 230 Vac |
| Inrush Current (typ.) | 50 A @ 115 Vac and 100 A @ 230 Vac |
| Touch Current (max.) | 0.1 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| Earth Leakage Current (max.) | 0.1 mA @ 264 Vac NC¹, 0.5 mA @ 264 Vac SFC² |
| 1) NC: Normal condition 2) SFC: Single fault condition | |
| OUTPUT RATINGS/CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | MEA-090A12C | MEA-090A15C | MEA-090A19C | MEA-090A24C |
| Nominal Output Voltage | 12 Vdc | 15 Vdc | 19 Vdc | 24 Vdc |
| Nominal Output Current | 6.75 A | 6.0 A | 4.74 A | 3.75 A |
| Output Power | 81 W | 90 W | 90 W | 90 W |
| Line Regulation (max.) | ± 0.5% | |||
| Load Regulation (max.) | ± 4.5% | |||
| Ripple & Noise (min.) | 1% | |||
| Rise Time | < 50 ms @ 115 Vac & 230 Vac | |||
| Start-up Time | < 3000 ms @ 115 Vac & 230 Vac | |||
| Hold-up Time (typ.) | 20 ms @ 115 Vac & 230 Vac | |||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 0-50% & 50-100% load; Slew rate 0.25 A/µs (@ 100 Hz, 50% Duty Cycle) | |||
| MECHANICAL | |
|---|---|
| Case Chassis / Cover | PC |
| Dimensions (W x L x H) | 62.0 x 135.0 x 32.0 mm (2.44 x 5.31 x 1.26 inch) |
| Unit Weight | 0.31 kg (0.68 lb) |
| Cable Length | 1200 mm |
| Indicator | Green LED |
| Terminal Input | IEC 60320 C14 socket |
| Terminal Output | Tuning Fork type: 5.5 x 2.5 x 11 mm, 90° (MEA-090A□C V-A) 4 Pin Din type, 180° (MEA-090A□C 6-A) Tuning Fork type: 5.5 x 2.5 x 11 mm, 180° (MEA-090A□C W-A) |
| ENVIRONMENT | ||
|---|---|---|
| Surrounding Air Temperature | Operating | -10°C to +60°C |
| Storage | -40°C to +85°C | |
| Power De-rating | > 40°C de-rate power by 2.5% / °C | |
| Operating Humidity | 5-95% RH (Non-Condensing) | |
| Operating Altitude | Up to 5,000 meters (up to 16,400 feet or 106-54kPa) | |
| Shock Test | Non-Operating | 50G, 11 ms, 3 shocks for each direction |
| Vibration | Non-Operating | 5-500 Hz, 2.09 Grms, 20 minute for each three axis |
| PROTECTIONS | |
|---|---|
| Overvoltage (max.) | 150% max, Latch Mode |
| Overload / Overcurrent (max.) | 180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Over Temperature | Latch Mode |
| Short Circuit | Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Degree of Protection | IP22 |
| Protection Against Shock | Class I with C14 socket |
| RELIABILITY DATA | |
|---|---|
| MTBF (typ.) | > 1 million Hours based on Telecordia SR-332 (at 115 Vac, Max. load and 25°C Ambient) |
| Expected Cap Life Time | 5 years (50% load @ 115 Vac, 25°C) |
| SAFETY STANDARDS/DIRECTIVES | ||
|---|---|---|
| Medical Safety | IEC 60601-1 CB report, EN 60601-1 CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1 |
|
| ITE Safety | IEC 62368-1 IEC 60950-1 GB4943.1, GB9254, GB17625.1 PSE J60950-1(H29) |
|
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015 |
|
| UKCA | In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002) |
|
| Material and Parts | RoHS Directive 2011/65/EU & EU 2015/863 Compliant | |
| Galvanic Isolation | Input to Output Input to PE³ Output to PE³ |
4000 Vac 1500 Vac 500 Vac |
| 3) C14 socket model, PE: Protection Earth | ||
| EMC | ||
|---|---|---|
| EMC / Emissions | EN/BS EN 55011, EN/BS EN 55032 : Class B Compliance to FCC Title 47: Class B |
|
| Harmonic Current Emissions | IEC 61000-3-2 | Meet Class A |
| Voltage Flicker | IEC 61000-3-3 | |
| Immunity | ||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A4 Air Discharge: 15 kV Contact Discharge: 8 kV |
| Radiated Field | IEC 61000-4-3 | Criteria A4 80 MHz-2700 MHz, 10 V/m AM modulation 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation |
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A4: 2 kV |
| Surge | IEC 61000-4-5 | Level 3 Criteria A4 Common Mode6: 2 kV Differential Mode7: 1 kV |
| Conducted | IEC 61000-4-6 | Level 2 Criteria A4 150 kHz-80 MHz, 3 Vrms, 6 Vrms at ISM bands and Amateur radio bands |
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Criteria A4 Magnetic field strength 30 A/m |
| Voltage Dips | IEC 61000-4-11 | Criteria A4 0% UT, 0.5 cycle (10 ms), 0°/45°/90°/135°/180°/225°/270°/315°/360° Criteria B5 0% UT, 1 cycle (20 ms), 0° Criteria A4 70% UT, 25 cycle (500 ms), 0° Criteria B5 0% UT, 250 cycle (5000 ms), 0° |
| 4) Criteria A: Normal performance within the specification limits 5) Criteria B: Output out of regulation, or shuts down during test. Automatically restore to normal operation after test. 6) Asymmetrical: Common mode (Line to earth) 7) Symmetrical: Differential mode (Line to line) |
||
Selection Table
| Model Number | Input Voltage | Output Voltage | Output Current |
|---|---|---|---|
| MEA-090A12C | 90-264 Vac | 12 Vdc | 6.75 A |
| MEA-090A15C | 90-264 Vac | 15 Vdc | 6.0 A |
| MEA-090A19C | 90-264 Vac | 19 Vdc | 4.74 A |
| MEA-090A24C | 90-264 Vac | 24 Vdc | 3.75 A |

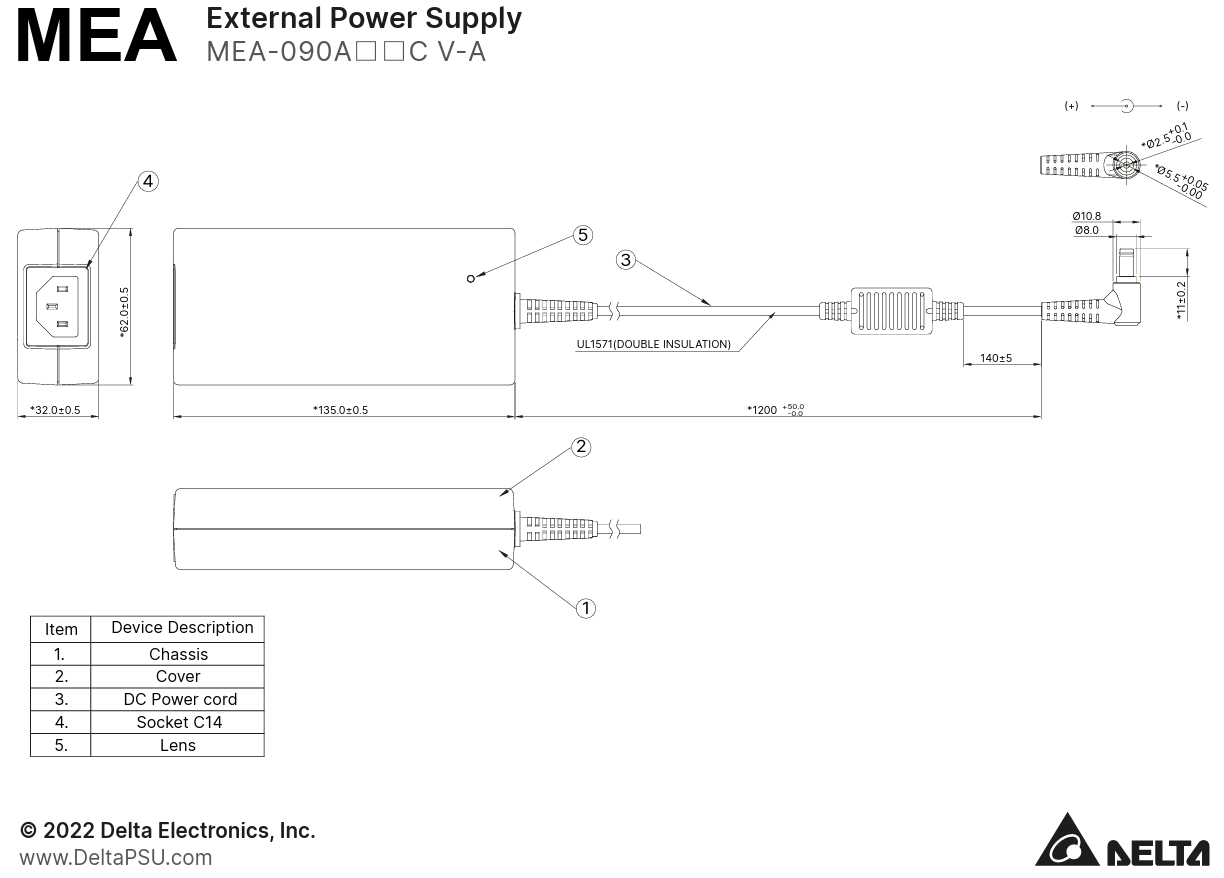

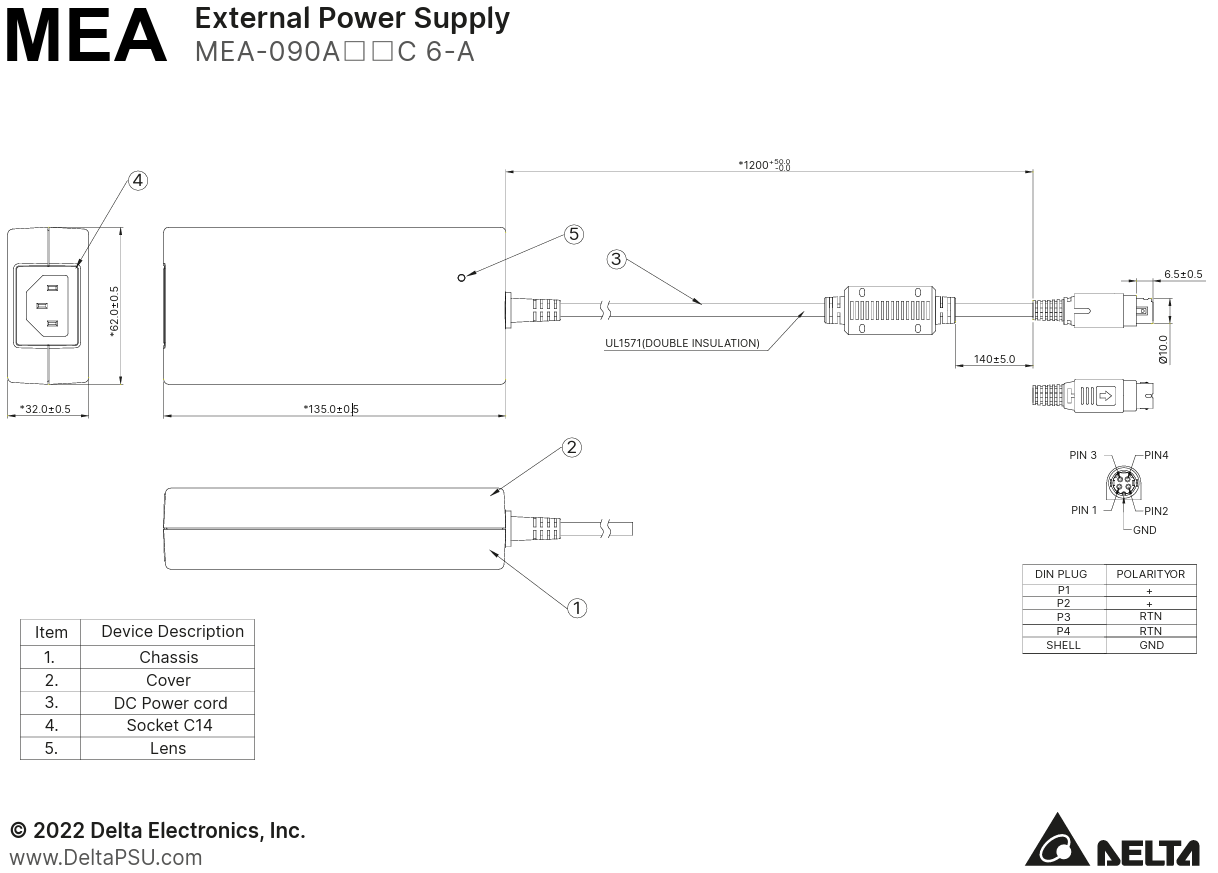

Technical Drawings
