Delta Electronics MEA-065AXXB Series Medical AC-DC Adapter
The Delta MEA-065AXXB series is a Class II medical AC-DC desktop adapter family designed for medical and information technology equipment. It accepts a universal 90–264Vac input range and provides single-output 12Vdc, 15Vdc, 19Vdc or 24Vdc variants with output power from 60W to 65W. The Delta MEA-065AXXB features include Class II double isolatio...
Read MoreThe Delta MEA-065AXXB series is a Class II medical AC-DC desktop adapter family designed for medical and information technology equipment. It accepts a universal 90–264Vac input range and provides single-output 12Vdc, 15Vdc, 19Vdc or 24Vdc variants with output power from 60W to 65W.
The Delta MEA-065AXXB features include Class II double isolation, 2 × MOPP isolation, low touch current, DOE Level VI and CoC Tier 2 efficiency compliance, an IEC 60320 C8 input socket, 5.5 x 2.5 x 10 mm tuning fork output connector, green LED indication, and IP22 protection. The compact external adapter is designed without a protective earth connection and uses fanless operation.
Show Lessor send a quick enquiry about this product only
Features
- Input voltage range: 90–264Vac universal input.
- Output voltage: available in 12Vdc, 15Vdc, 19Vdc and 24Vdc variants.
- Output current: up to 5.0A, 4.33A, 3.42A or 2.71A depending on model.
- Output power: 60W for 12V model and 65W for 15V, 19V and 24V models.
- Class II, double isolation with no earth connection required.
- 2 × MOPP isolation.
- DOE Level VI and CoC Tier 2 energy requirement compliant.
- Low touch current: < 0.1 mA normal and 0.3 mA single fault.
- IEC 60320 C8 input socket.
- Output connector: tuning fork 5.5 x 2.5 x 10 mm, 180°.
- Green LED indication.
- Protection rating: IP22.
- Fanless operation.
Specifications
| INPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63 Hz |
| Input Current (max.) | 1.5 A @ 115 Vac, 0.75 A @ 230 Vac |
| Average Efficiency | 89% |
| Efficiency @ 10% Load | 85% |
| Standby Power (max.) | 0.15 W @ 115 Vac & 230 Vac |
| Inrush Current (typ.) | 50 A @ 115 Vac and 100 A @ 230 Vac |
| Touch Current (max.) | 0.1 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| Earth Leakage Current (max.) | 0.1 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| 1) NC: Normal condition 2) SFC: Single fault condition | |
| OUTPUT RATINGS/CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | MEA-065A12B | MEA-065A15B | MEA-065A19B | MEA-065A24B |
| Nominal Output Voltage | 12 Vdc | 15 Vdc | 19 Vdc | 24 Vdc |
| Nominal Output Current | 5.0 A | 4.33 A | 3.42 A | 2.71 A |
| Output Power | 60 W | 65 W | 65 W | 65 W |
| Line Regulation | ± 0.5% | |||
| Load Regulation | ± 4.5% | |||
| PARD*** (20 MHz) | 1% | |||
| Rise Time | < 50 ms @ 115 Vac & 230 Vac | |||
| Start-up Time | < 3000 ms @ 115 Vac & 230 Vac | |||
| Hold-up Time | 10 ms typ. @ 115 Vac | |||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 5-100% load; Slew rate 0.1 A/µs (@ 5Hz, 100 Hz, 10kHz, 50% Duty Cycle) | |||
| MECHANICAL | |
|---|---|
| Case Chassis / Cover | PC |
| Dimensions (W x L x H) | 50.0 x 120.0 x 32.0 mm (1.97 x 4.72 x 1.26 inch) |
| Unit Weight | 250 grams (0.55 lb) |
| Cable Length | 1200 mm |
| Indicator | Green LED |
| Terminal Input | IEC 60320 C8 socket |
| Terminal Output | Tuning Fork: 5.5 x 2.5 x 10 mm, 180° (MEA-065A□B A-A) |
| ENVIRONMENT | ||
|---|---|---|
| Surrounding Air Temperature | Operating | -10°C to +60°C |
| Storage | -40°C to +85°C | |
| Power De-rating | > 40°C de-rate power by 2.5% / °C | |
| Operating Humidity | 10-95% RH (Non-Condensing) | |
| Operating Altitude | Up to 5,000 meters (up to 16,400 feet or 106-54 kPa) | |
| Shock Test | Non-Operating | 50 G, 11 ms, 3 shocks for each direction |
| Vibration | Non-Operating | 5-500 Hz, 2.09 Grms, 20 minute for each three axis |
| PROTECTIONS | |
|---|---|
| Overvoltage (max.) | 150% max, Latch Mode |
| Overload / Overcurrent (max.) | 180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Over Temperature | Latch Mode |
| Short Circuit | Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Degree of Protection | IP22 |
| Protection Against Shock | Class II |
| RELIABILITY DATA | |
|---|---|
| MTBF (typ.) | 1 million Hours based on Telecordia SR-332 (at 115 Vac, 100% load and 25°C Ambient) |
| Expected Cap Life Time | 3 years (115 Vac, 100% load @ 25°C) |
| SAFETY STANDARDS/DIRECTIVES | ||
|---|---|---|
| Medical Safety | IEC 60601-1 CB Report, EN 60601-1 CAN/CSA-C22.2 No. 60601-1 ANSI/AAMI ES60601-1 |
|
| ITE Safety | IEC 62368-1, UL 62368-1, PSE J 62368-1 CCC GB 4943.1, GB/T 9254.1, GB 17625.1 BSMI CNS 15598-1 NRCan CAN/CSA-C381.1-17 KC 62368-1 (for 12V & 24V models) BIS IS 13252 (Part 1) |
|
| Limited Power Source (LPS) | IEC 62368-1 CB Report | |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A1: 2013 + A2: 2021 & EN 60601-1-2: 2015+ A1:2021 |
|
| UKCA | In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002) |
|
| Galvanic Isolation | Input to Output | 4000 Vac |
| EMC | ||
|---|---|---|
| EMC / Emissions | EN / BS EN 55011, EN/ BS EN 55032 : Class B CISPR 11, CISPR 32 : Class B KS C 9832 Compliance to FCC Title 47: Class B |
|
| Harmonic Current Emissions | IEC 61000-3-2 | Meet Class A |
| Voltage Flicker | IEC 61000-3-3 | |
| Immunity | ||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A³ Air Discharge: 15 kV Contact Discharge: 8 kV |
| Radiated Field | IEC 61000-4-3 | Criteria A³ 80 MHz-2700 MHz, 10 V/m AM modulation 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation |
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A³: 2 kV |
| Surge | IEC 61000-4-5 | Level 3 Criteria A³ Common Mode5: 2 kV Differential Mode6: 1 kV |
| Conducted | IEC 61000-4-6 | Level 2 Criteria A³ 150 kHz-80 MHz, 3 Vrms, 6 Vrms at ISM bands and Amateur radio bands |
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Criteria A³ Magnetic field strength 30 A/m |
| Voltage Dips | IEC 61000-4-11 | Criteria A³ 0% UT, 0.5 cycle (10 ms), 0°/45°/90°/135°/180°/225°/270°/315°/360° Criteria B4 0% UT, 1 cycle (20 ms), 0° Criteria A³ 70% UT, 25 cycle (500 ms), 0° (for 12V/19V/24V models) Criteria B4 70% UT, 25 cycle (500 ms), 0° (for 15V model) Criteria B4 0% UT, 250 cycle (5000 ms), 0° |
| 3) Criteria A: Normal performance within the specification limits 4) Criteria B: Output out of regulation, or shuts down during test. Automatically restore to normal operation after test. 5) Asymmetrical: Common mode (Line to earth) 6) Symmetrical: Differential mode (Line to line) |
||
Selection Table
| Model Number | Input Voltage | Output Voltage | Output Current |
|---|---|---|---|
| MEA-065A12B | 90-264 Vac | 12 Vdc | 5.0 A |
| MEA-065A15B | 90-264 Vac | 15 Vdc | 4.33 A |
| MEA-065A19B | 90-264 Vac | 19 Vdc | 3.42 A |
| MEA-065A24B | 90-264 Vac | 24 Vdc | 2.71 A |

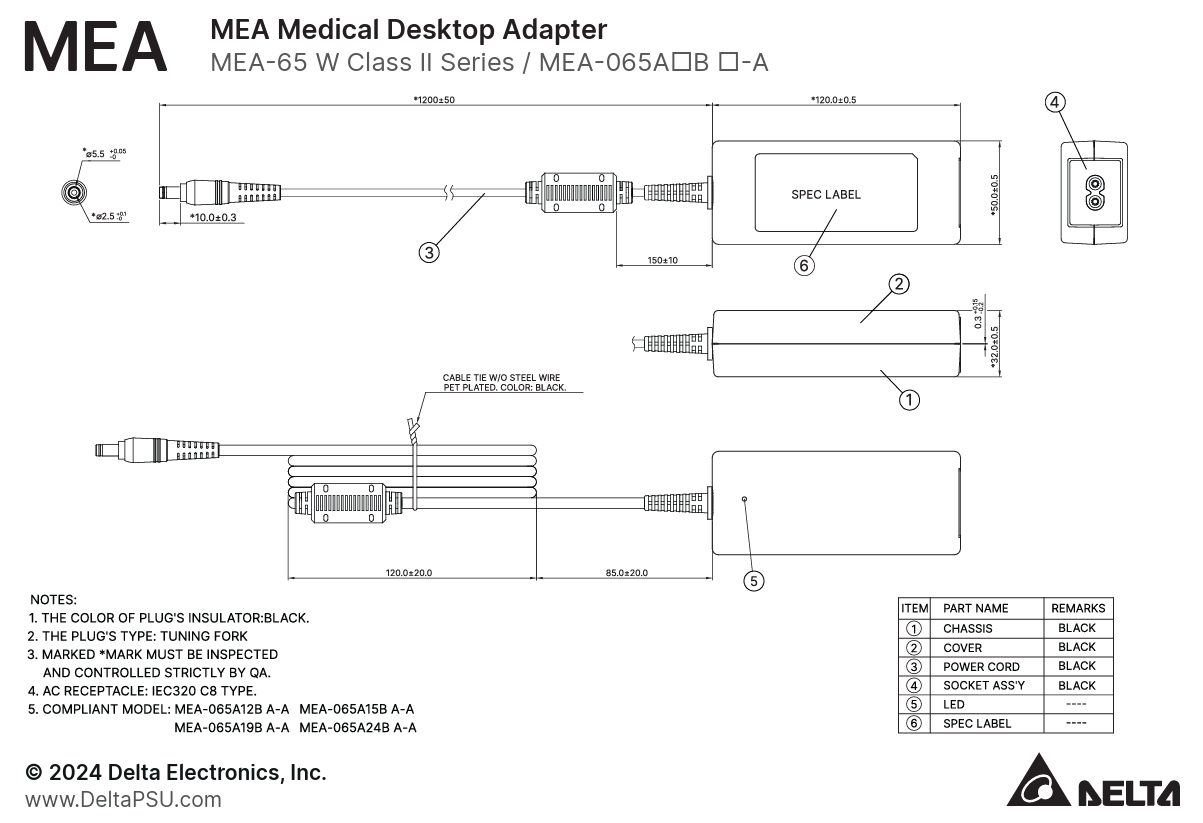

Technical Drawings
