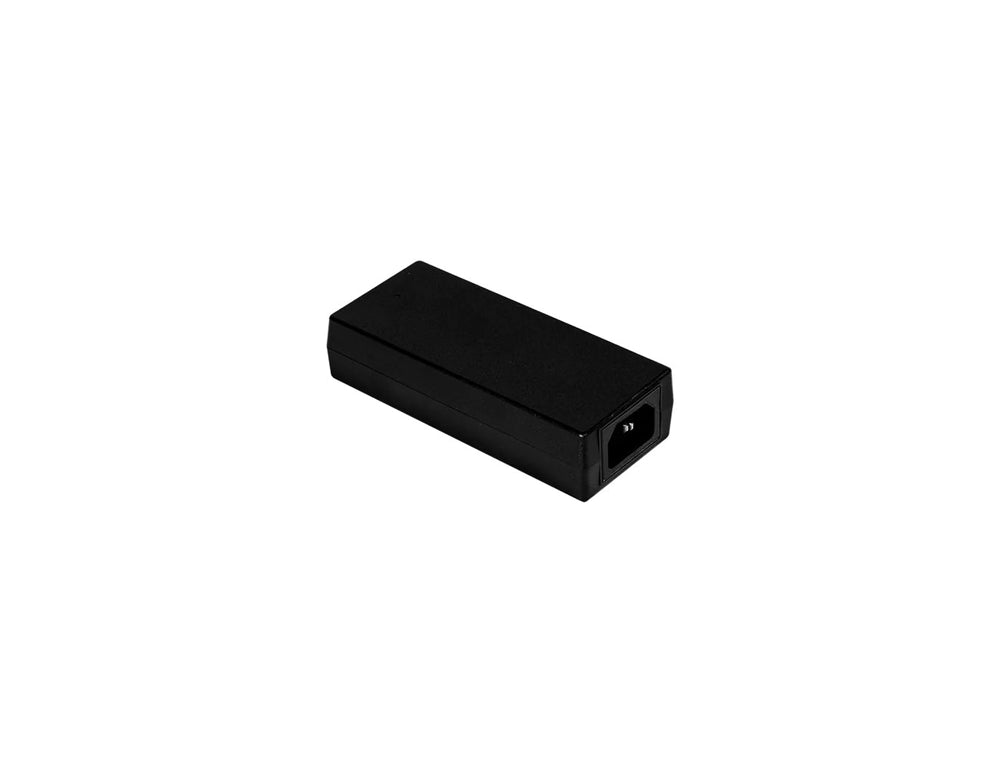

Delta Electronics MEA-065AXXC Series Medical AC-DC Adapter
The Delta MEA-065AXXC series is a medical AC-DC desktop adapter family for medical and information technology equipment. It accepts a universal 90-264Vac input range and provides single-output 12Vdc, 15Vdc, 19Vdc or 24Vdc variants with output power from 60W to 65W. The Delta MEA-065AXXC features include 2 × MOPP isolation, low touch current, DOE...
Read MoreThe Delta MEA-065AXXC series is a medical AC-DC desktop adapter family for medical and information technology equipment. It accepts a universal 90-264Vac input range and provides single-output 12Vdc, 15Vdc, 19Vdc or 24Vdc variants with output power from 60W to 65W.
The Delta MEA-065AXXC features include 2 × MOPP isolation, low touch current, DOE Level VI efficiency compliance, IEC 60320 C14 input socket, green LED indication, IP22 protection, and fanless operation. Supported output connector options in the family include a 5.5 × 2.5 × 10 mm straight tuning fork, 4-pin DIN on selected models, and a 5.5 × 2.5 × 11 mm 90° tuning fork on selected models.
Show Less
Features
- Input voltage range: 90-264Vac universal input.
- Output voltage: available in 12Vdc, 15Vdc, 19Vdc and 24Vdc variants.
- Output current: up to 5.0A, 4.33A, 3.42A or 2.71A depending on model.
- Output power: 60W for 12V model and 65W for 15V, 19V and 24V models.
- 2 × MOPP isolation.
- Low touch current: < 0.1 mA normal and 0.3 mA single fault.
- Meet Efficiency Level VI.
- IEC 60320 C14 input socket.
- Supported output connectors in the family include 5.5 × 2.5 × 10 mm straight tuning fork, selected 4-pin DIN options, and selected 5.5 × 2.5 × 11 mm 90° tuning fork options.
- Green LED indication.
- Protection rating: IP22.
- Fanless operation.

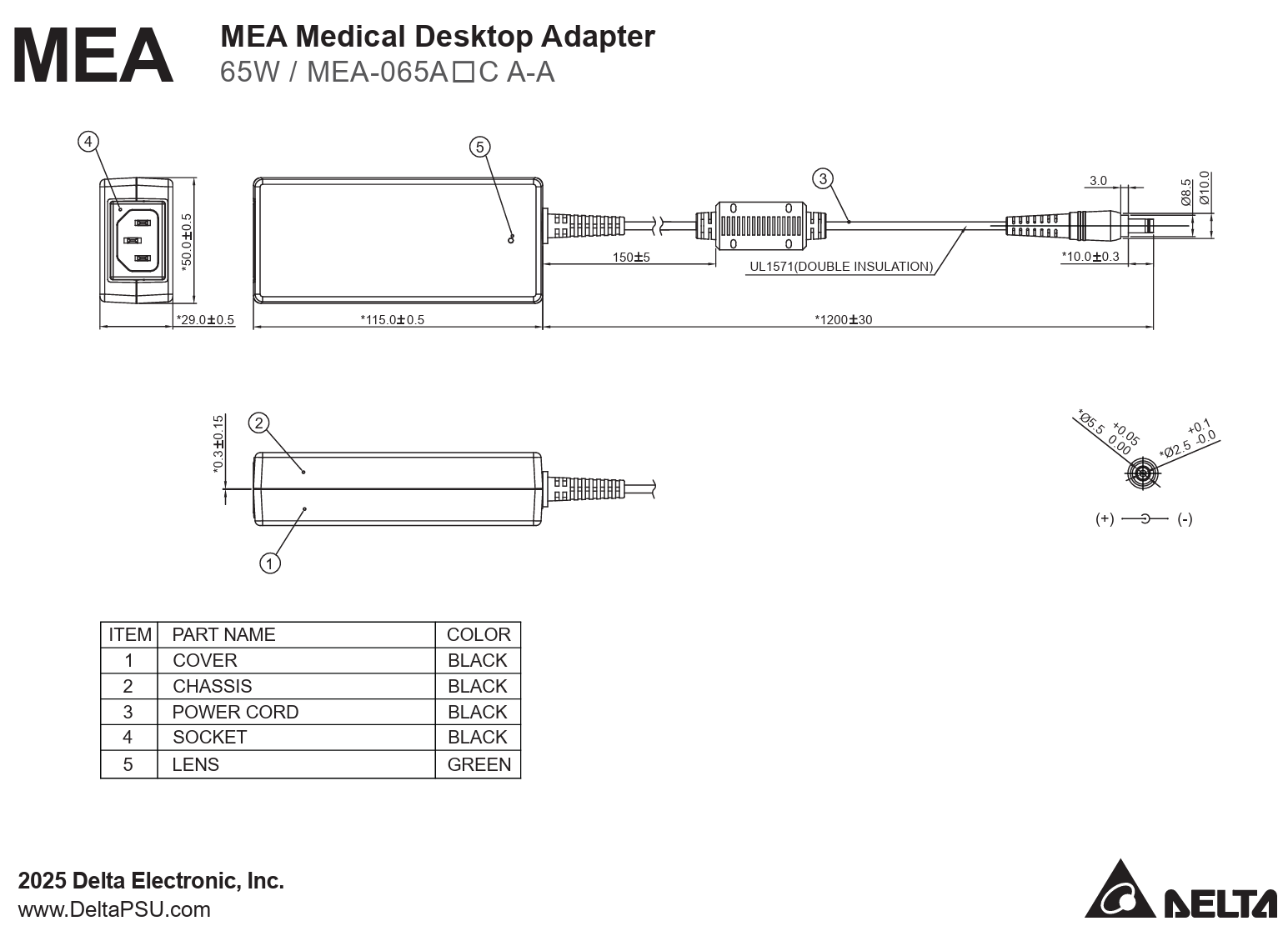

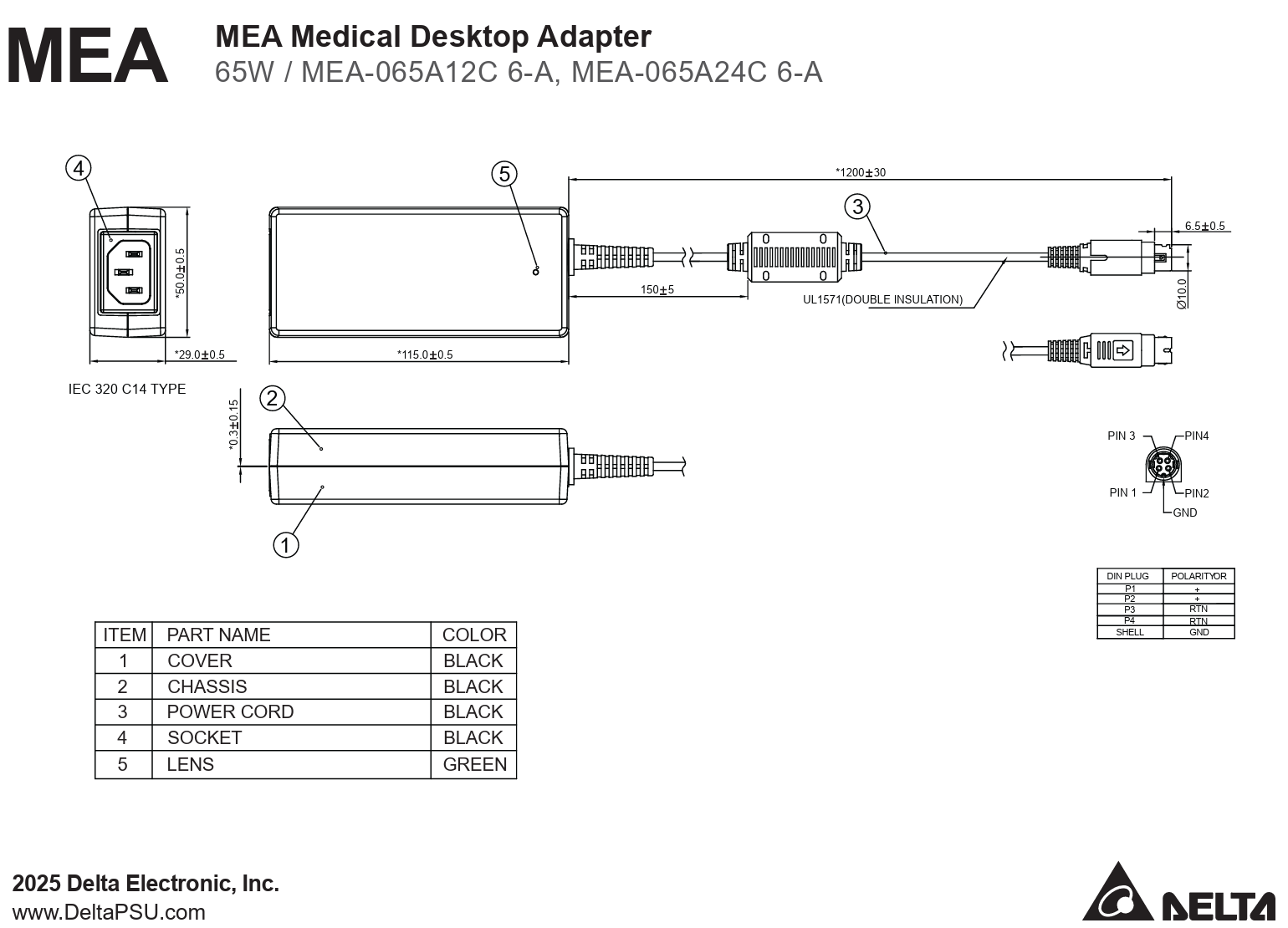

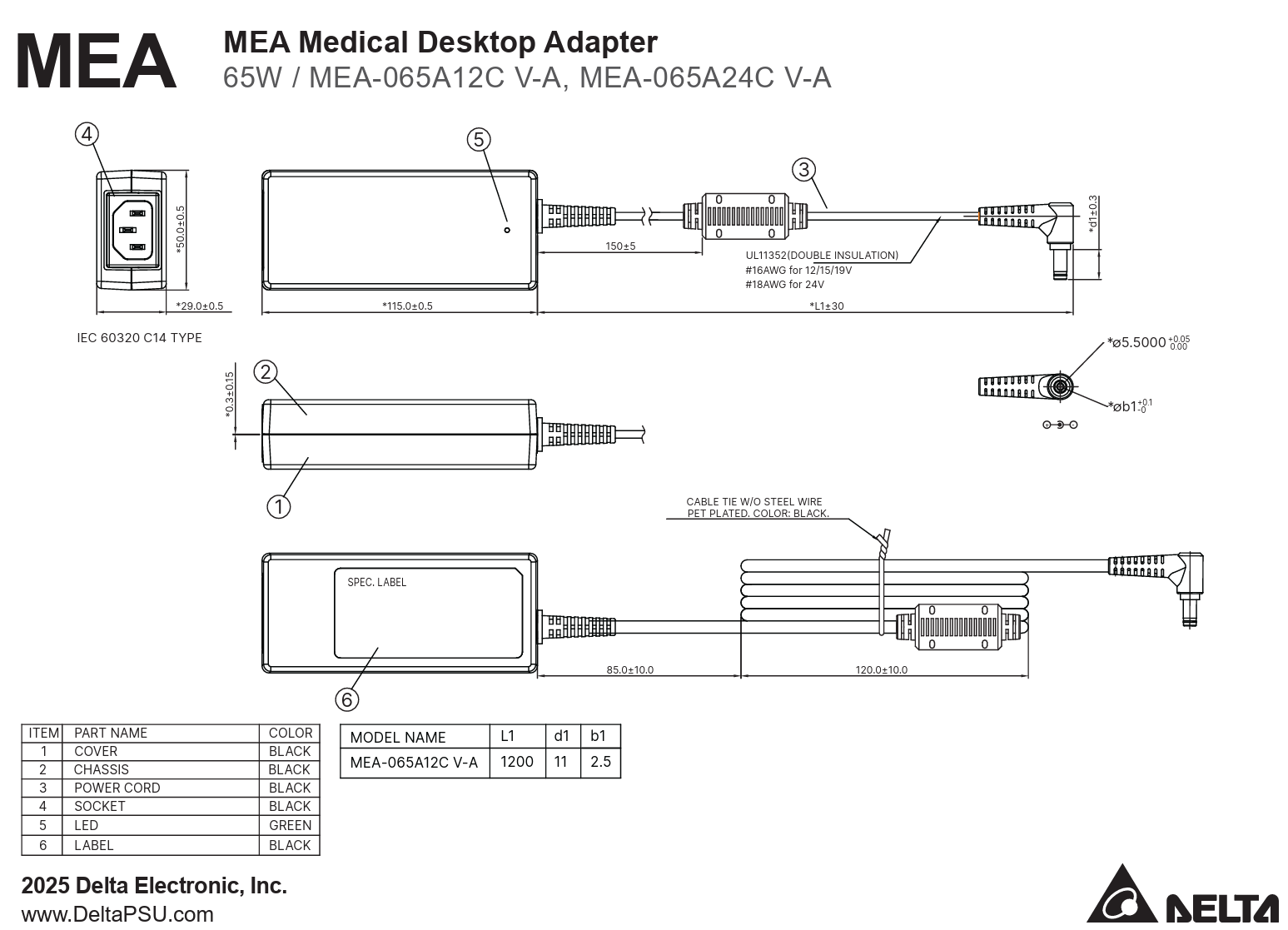

Technical Drawings
