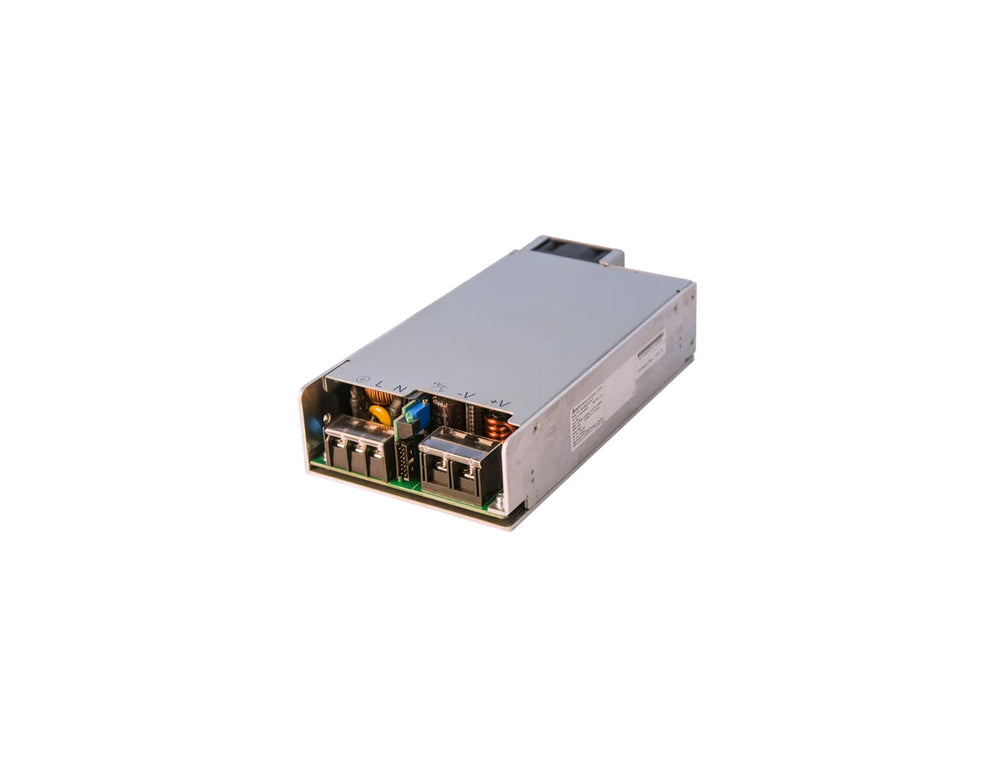

Delta Electronics IMA-S600 Series 600W Medical / Industrial AC-DC Power Supply
The Delta IMA-S600 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main outputs together with a 5Vdc / 0.5A standby output and delivers up to 600W output power in a compact 1...
Read MoreThe Delta IMA-S600 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main outputs together with a 5Vdc / 0.5A standby output and delivers up to 600W output power in a compact 1U design.
The Delta IMA-S600 features include variable speed fan control, PMBus-compatible control and monitoring, remote ON/OFF, power good, remote sense, adjustable output voltage, 2 × MOPP isolation, and active current sharing on supported variants. The IMA-S600 family is designed for medical, industrial and IT systems where high efficiency, low acoustic noise and reliable standby power are required.
Show Less
Features
- Input voltage range: 80–275Vac or 120–300Vdc.
- Output voltage: 12Vdc, 24Vdc or 48Vdc main output plus 5Vdc standby.
- Output current: up to 50A at 12V, 25A at 24V and 12.5A at 48V.
- Output power: 600W maximum.
- Wide adjustable output voltage range of ±20%.
- Variable speed fan control.
- Active current sharing on supported variants.
- Remote ON/OFF, power good and remote sense supported.
- PMBus compatible for control, programming and monitoring.
- 2 × MOPP isolation.
- Low acoustic noise level of less than 38.5 dB(A).
- Designed for medical, industrial and IT applications.

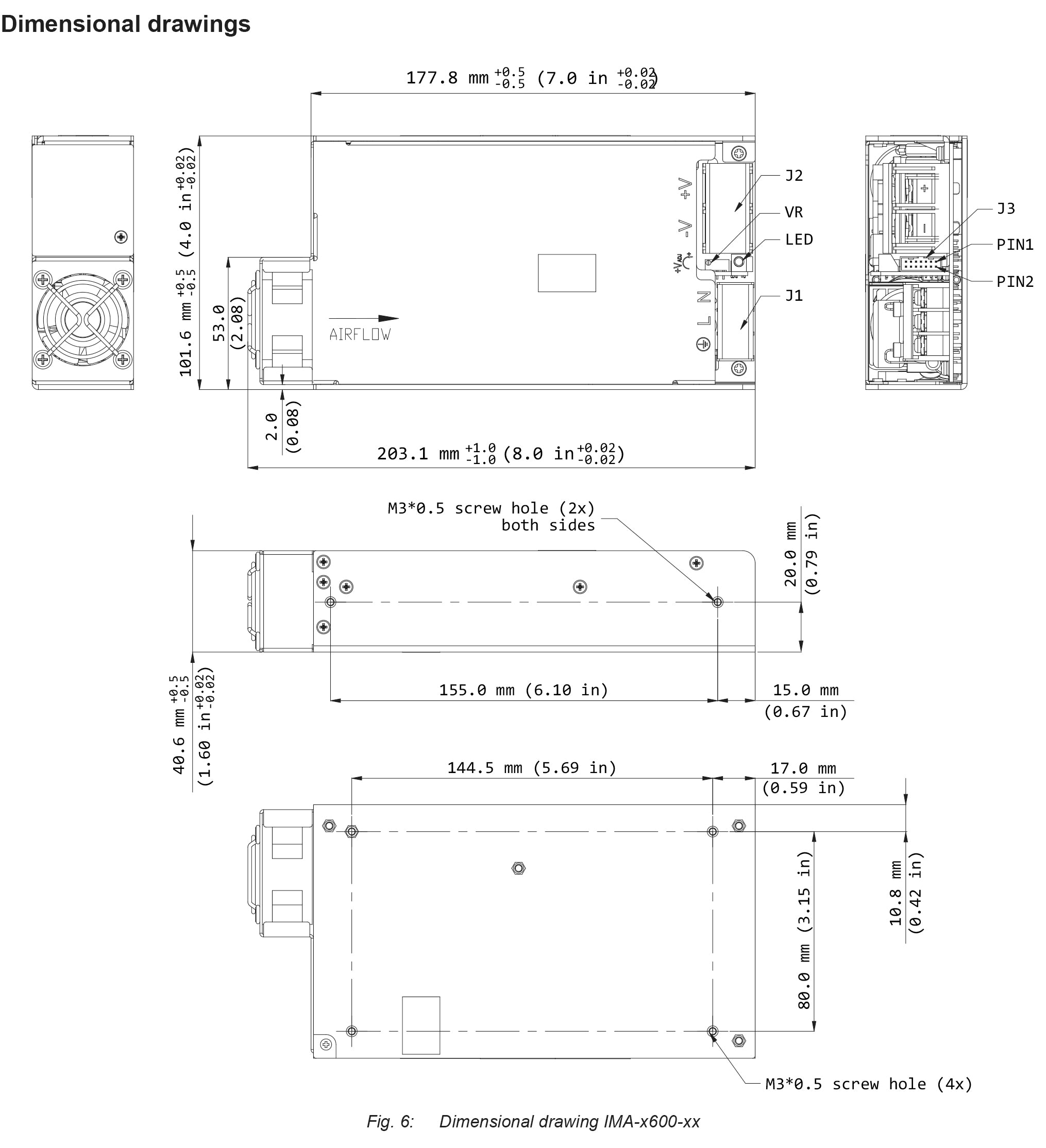

Technical Drawings
