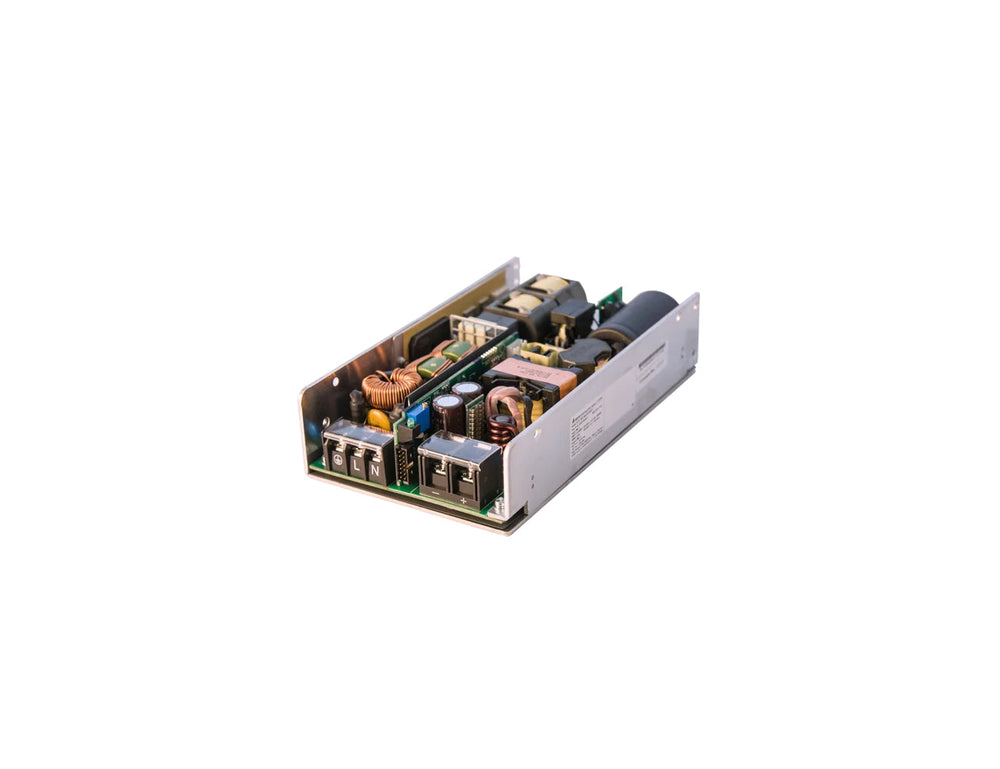

Delta Electronics IMA-S400 Series 400W Medical / Industrial AC-DC Power Supply
The Delta IMA-S400 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main output options with up to 33.3A, 16.7A or 8.3A respectively, plus a 5Vdc standby output rated at 0.5A....
Read MoreThe Delta IMA-S400 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main output options with up to 33.3A, 16.7A or 8.3A respectively, plus a 5Vdc standby output rated at 0.5A.
The Delta IMA-S400 features include up to 400W output power, adjustable main output voltage range of ±20%, active current sharing, PMBus-compatible monitoring and control, remote on/off, power good signal, remote sense, 2 × MOPP isolation, low acoustic noise below 30 dB(A), and a 500,000 hour MTBF. The standard IMA-S400 variants use an enclosed 1U chassis with fan cooling.
Show Less
Features
- Input voltage range: 80–275Vac or 120–300Vdc.
- Output voltage: 12Vdc, 24Vdc or 48Vdc main output plus 5Vdc standby.
- Output current: up to 33.3A at 12Vdc, 16.7A at 24Vdc, or 8.3A at 48Vdc.
- Output power: 400W maximum.
- High efficiency up to 94%.
- Main output adjustable by ±20%.
- Active current sharing.
- PMBus compatible for control, programming and monitoring.
- Remote on/off, remote sense and power good signal.
- 2 × MOPP isolation.
- Low acoustic noise level of less than 30 dB(A).
- Medical, industrial and IT safety approvals.

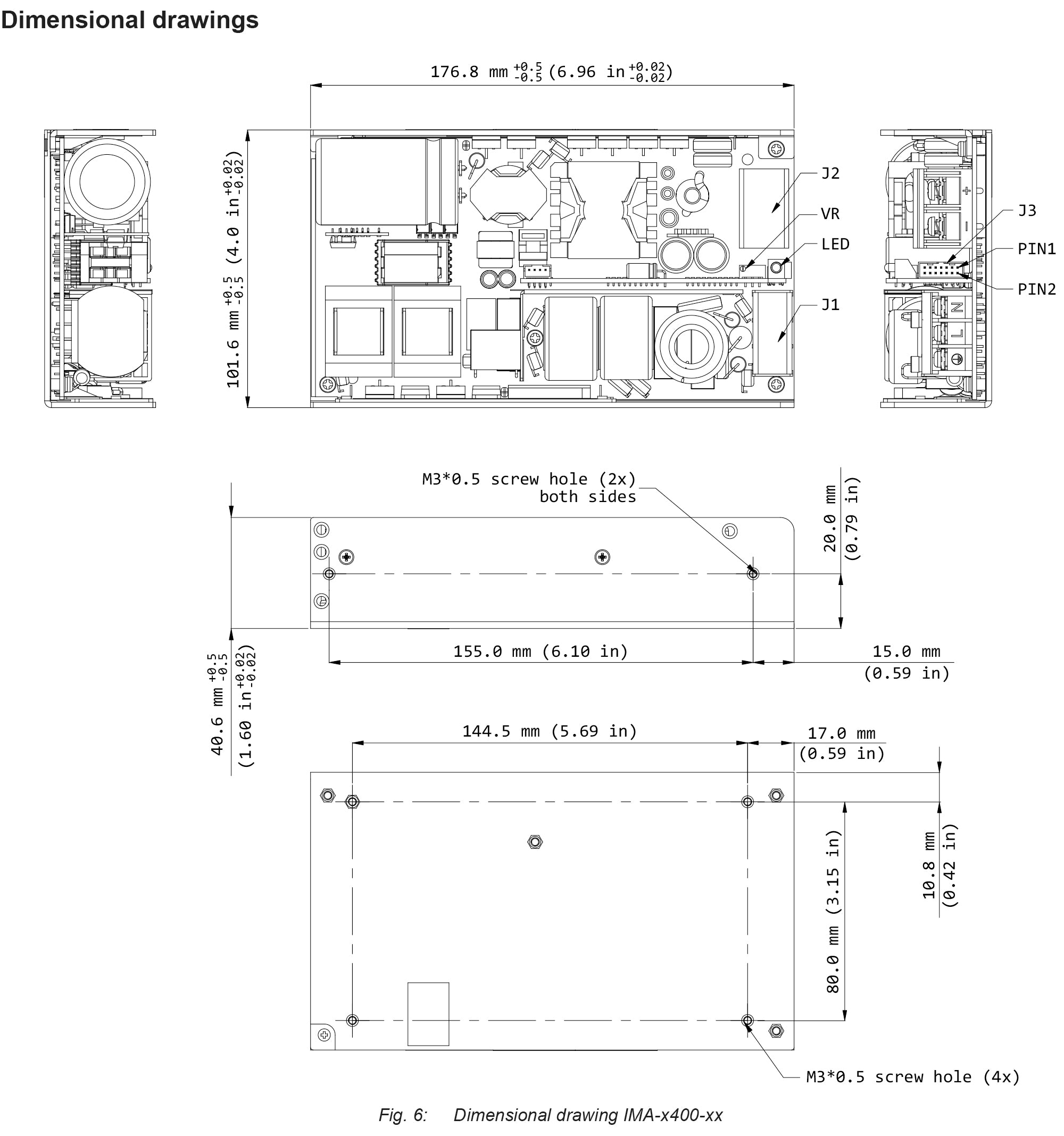

Technical Drawings
