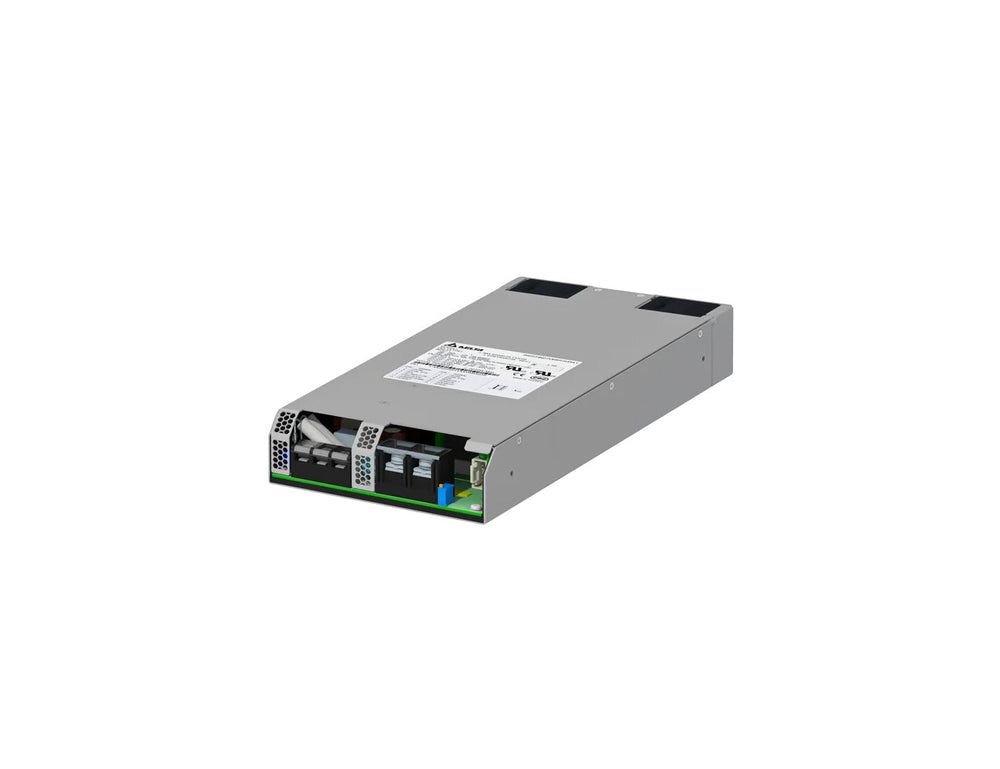

Delta Electronics IMA-S2000 Series 2000W Medical / Industrial AC-DC Power Supply
The Delta IMA-S2000 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 24Vdc or 48Vdc main outputs together with a 5Vdc / 2A standby output and delivers up to 2000W continuous output power, with 3000...
Read MoreThe Delta IMA-S2000 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 24Vdc or 48Vdc main outputs together with a 5Vdc / 2A standby output and delivers up to 2000W continuous output power, with 3000W peak capability for up to 5 seconds.
The Delta IMA-S2000 features include two fans with variable speed control, PMBus-compatible control and monitoring, remote ON/OFF, power good, AC-good, remote sense, adjustable output voltage, 2 × MOPP isolation, active current sharing and support for BF appliances. The IMA-S2000 family is designed for medical and industrial systems requiring high power density, standby output and redundant-capable operation.
Show Less
Features
- Input voltage range: 80–275Vac or 120–300Vdc.
- Output voltage: 24Vdc or 48Vdc main output plus 5Vdc standby.
- Output current: up to 83.3A at 24V and 41.6A at 48V at 230Vac.
- Output power: 2000W continuous at 230Vac and 3000W peak up to 5 seconds.
- Wide adjustable output voltage range of ±20%.
- Two fans with variable speed control.
- Active current sharing.
- Remote ON/OFF, Power Good, AC-Good and remote sense supported.
- PMBus compatible for control, programming and monitoring.
- 2 × MOPP and BF appliances support.
- Low acoustic noise level of less than 39 dB(A).
- Designed for medical and industrial applications.
Specifications
| AC/DC INPUT (J1) | ||
|---|---|---|
| Parameter | IMA-S2000-24-YVxxx | IMA-S2000-48-YVxxx |
| Nominal Input Voltage | 100 Vac to 240 Vac | |
| AC Operating Input Voltage Range | 80 Vac to 275 Vac | |
| Nominal Input Frequency | 50 / 60 Hz | |
| Input Frequency Range | 47 Hz to 63 Hz | |
| DC Input Voltage Range | 120 Vdc to 300 Vdc | |
| Maximum Input Current @ 80 Vac | 17.2 A | 17.2 A |
| Maximum Input Current @ 120 Vdc | 12 A | 12 A |
| Efficiency @ 70% load1 @ 230 Vac | 94% | 94% |
| Efficiency @ 70% load @ 115 Vac | 92% | 92% |
| Max Inrush Current2 @ 264 Vac | < 25 A | |
| Input Fuse | DC input compliant, dual 25 A fuses used | |
| Power Factor3 (115 Vac and 230 Vac / 50 Hz) | > 0.97 (typical) | |
| 1) Excluding fan power 2) Hot and cold turn on 3) EN 61000-3-2, Class A compliant | ||
| MAIN DC OUTPUT (J2) | ||
|---|---|---|
| Parameter | IMA-S2000-24 | IMA-S2000-48 |
| Nominal Output Voltage | 24 V | 48 V |
| Output Voltage Adjustment Range | 19.2 V to 28.8 V | 38.4 V to 57.6 V |
| Maximum Output Power @ 115 Vac | 1600 W | 1600 W |
| Maximum Output Power @ 230 Vac | 2000 W | 2000 W |
| Output Power (Peak) | 3000 W | 3000 W |
| Output Voltage Regulation Total | ± 2.5% | |
| Output Voltage Regulation Over Line | 0.25% | |
| Output Voltage Regulation Over Load | 1% | |
| Output Voltage Regulation Over Temperature | 1% | |
| Maximum Output Current @ 115 Vac | 0 to 60.4 A | 0 to 30.2 A |
| Maximum Output Current @ 230 Vac | 0 to 83.3 A | 0 to 41.7 A |
| Maximum Output Capacitive Load | 10,000 µF | |
| Ripple & Noise (max) | 1.25% Vrated pk-pk @ rated load (2000 W) | |
| Dynamic Load Regulation1 | < 5% | |
| PARD2 (20 MHz) | TBD | < 480 mV |
| Turn On Overshoot | < 2.5% | < 3% |
| Output Rise Time | < 200 ms | < 200 ms |
| Hold Up Time | 20 ms | |
| Start Up Time | 2000 ms with AC turn on | |
| Output Over Voltage Protection | YES, latch mode; 30 V to 35 V | YES, latch mode; 58 V to 61 V |
| Output Over Current Protection | 3000 W for over 750 ms max Standby 3.2 A max with Hiccup Mode (Non-Latching, Auto-Recovery) | |
| Short Circuit Protection | YES, auto recovery | |
| Over Temperature Protection | YES, auto recovery | |
| Remote Sense3 | 500 mV total voltage drop compensation via +V_SENSE and -V_SENSE (J3 Pins 13 and 14) | |
| 1) 50% step from 5% load, 1 A/µs, 10 µF Tan and 1µF ceramic capacitor 2) 10 µF Tan and 1µF ceramic capacitor 3) Do not short or reversely connect +V_SENSE and -V_SENSE — this can damage the power supply. | ||
| AUXILIARY DC OUTPUT (J3) | ||
|---|---|---|
| Parameter | IMA-S2000-24 | IMA-S2000-48 |
| Connector Type | Molex, Part number 501646-1400, 14 pin | |
| Nominal Output Voltage | 5 V | |
| Output Voltage Adjustment Range | 4.75 to 5.25 V | 4.75 to 5.25 V |
| Output Voltage Regulation Total | 2.5% | |
| Output Voltage Regulation Over Line | 0.25% | 0.3% |
| Output Voltage Regulation Over Load | 1% | |
| Output Voltage Regulation Over Temperature | 1% | |
| Maximum Output Current | 2 A | |
| Maximum Output Capacitive Load | 1000 µF | |
| Output Over Voltage Protection | Yes, at 30 V to 35 V; latch mode | Yes, at 58 V to 61 V; latch mode |
| Output Over Current Protection | YES, at 108% to 140% of max output current; auto recovery | |
| Short Circuit Protection | YES, auto recovery | |
| Over Temperature Protection | YES, auto recovery | |
| GALVANIC ISOLATION & LEAKAGE CURRENTS | ||
|---|---|---|
| Galvanic Isolation | IMA-S2000-xx | |
| Input to Output | Reinforced | 4000 Vac; 2 x MOPP |
| Input to Case | Basic | 1500 Vac; 1 x MOPP |
| Output to Case | Basic | 1500 Vac; 1 x MOPP (Type BF application rated) |
| AC Leakage Current — Input to Earth Ground | ||
| Normal condition (low line) | 132 Vac | < 150 µA @ 60 Hz; < 150 µA @ 63 Hz |
| Single fault condition (low line) | 132 Vac | < 250 µA @ 60 Hz; < 260 µA @ 63 Hz |
| Normal condition (high line) | 264 Vac | < 300 µA @ 60 Hz; < 300 µA @ 63 Hz |
| Single fault condition (high line) | 264 Vac | < 500 µA @ 60 Hz; < 520 µA @ 63 Hz |
| AC Leakage Current — Output to Earth Ground1 | ||
| Normal condition (low line) | 132 Vac | Typical @ 60 Hz: 55 µA; Max @ 63 Hz: < 70 µA; IEC limit: 100 µA |
| Single fault condition (low line) | 132 Vac | Typical @ 60 Hz: 43 µA; Max @ 63 Hz: < 80 µA; IEC limit: 500 µA |
| Normal condition (high line) | 264 Vac | Typical @ 60 Hz: 172 µA; Max @ 63 Hz: < 230 µA; IEC limit: 500 µA |
| Single fault condition (high line) | 264 Vac | Max @ 60 Hz: < 1250 µA; Max @ 63 Hz: < 1800 µA; IEC limit: 5000 µA |
| 1) Meets IEC 60601-1 BF leakage current limit | ||
| ENVIRONMENTAL CONDITIONS | ||
|---|---|---|
| Parameter | IMA-S2000-24 | IMA-S2000-48 |
| Ambient Operating Temperature Range | -20°C to +70°C (-40°F to +158°F) | |
| Ambient Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) | |
| Relative Humidity | 5% to 95% (non-condensing) | |
| Operating Altitude1 2 | 5000 m (54kPa) | |
| Pollution Degree | 2 | |
| Output Power Derating vs Input Voltage | When AC input voltage < 110 Vac, output power reduced by 20 W per 1 V | |
| Output Power Derating vs Temp @ 80 Vac | When ambient temp > 50°C: reduce by 10 W per 1°C | When ambient temp > 50°C: reduce by 10 W per 1°C |
| Output Power Derating vs Temp @ 110 Vac | When ambient temp > 50°C: reduce by 40 W per 1°C | When ambient temp > 50°C: reduce by 40 W per 1°C |
| Output Power Derating vs Temp @ 180-275 Vac | When ambient temp > 50°C: reduce by 60 W per 1°C | When ambient temp > 50°C: reduce by 60 W per 1°C |
| Output Current Derating vs Output Voltage | When Vout > 24 Vdc: reduce by 0.8 A per 1 V | When Vout > 48 Vdc: reduce by 0.8 A per 1 V |
| Shock Test (non-operating) | IEC 60068-2-27 compliant, 50 g, 11 ms, 3 shocks each direction | |
| Vibration | IEC 60068-2-6 compliant, 2.09 Grms, 5-500 Hz, 20 minutes per side (3 planes) | |
| 1) Ambient operating temperature decreases by 1°C per 305 m (1000 ft) altitude increase 2) Maximum operating altitude requirements for different types of products, see “Safety standards and directives”, p. 7 | ||
| RELIABILITY | |
|---|---|
| MTBF1 | 500,000 hours (Telecordia SR-332, Method I, Case III, Issue 2, 25°C, 230 Vac, full load, 90% confidence) |
| Expected Capacitor Life Time2 | 10 years (nominal input voltage, 40°C, 80% load) |
| Fan L10 Life @ 40°C | 70,000 hours |
| Warranty | 3 years |
| 1) Telecordia SR-332, Method I, Case III, Issue 2, 25°C (77°F), 230 Vac, full load, 90% confidence level, based on component stress 2) Nominal input voltage, 40°C (104°F), 80% load |
|
| SAFETY STANDARDS & DIRECTIVES | |
|---|---|
| IEC 62368 Edition 2 | IEC 62368-1 (2014) Edition 2 5000 m (16,400 ft) altitude, 120 V to 300 Vdc and 100 V to 240±10% Vac |
| IEC/EN 60950-1, Edition 2 | UL 60950-1/CSA 22.2 No 60950-1, Edition 2; UL 62368-1 5000 m (16,400 ft) altitude, 120 V to 300 Vdc and 100 V to 240 ±10% Vac (UL File E135494) |
| IEC/EN 60601-1, Edition 3 | IEC 60601-1(2005), EN60601-1(2006) ANSI/AAMI ES 60601-1(2005) CAN/CSA C22.2 No. 60601-1 (2008) 3,000 m (9,800 ft) altitude, 100 V to 240 Vac ±10% |
| IEC 60601-1-2 Edition 4 | IEC 60601-1-2 (2014) |
| Protection Class1 | I |
| Ecological | WEEE Directive 2002/96/EC RoHS EU Directive 2002/65/EC compliant |
| 1) Designed to support Type B Applied Part End Product Requirements | |
| EMC | ||
|---|---|---|
| Fully tested according to EN 60601-1-2:2015 (4th edition) | ||
| Test | Applied Standard | Criteria |
| Radiated Emissions1 | EN 55032, EN 55032 and FCC, Class B | — |
| Conducted Emissions1 | EN 55032, EN 55032 and FCC, Class B | — |
| Power Line Harmonics | EN 61000-3-2, Class A | — |
| Voltage Flicker | EN 61000-3-3 | — |
| ESD | EN 61000-4-2, level 4, 8 kV contact, 15 kV air | A |
| Radiated Immunity | EN 61000-4-3, level 3, 12 V/m | A |
| Electrical Fast Transient | EN 61000-4-4, level 4, ±2 kV | A |
| Surge Immunity | EN 61000-4-5, level 4, 1 kV DM, 2 kV CM | A |
| Conducted RF Immunity | EN 61000-4-6, level 3, 10 Vrms | A |
| Power Frequency Magnetic Field | EN 61000-4-8, level 3, 10 A/m | A |
| Voltage Dips and Sags | EN 61000-4-11, 30%, 20 ms EN 61000-4-11, 60%, 100 ms EN 61000-4-11, 100%, 500 ms EN 60601-1-2:2015 (4th Ed.), 30%, 500 ms EN 60601-1-2:2015 (4th Ed.), 60%, 100 ms EN 60601-1-2:2015 (4th Ed.), 100%, 20 ms EN 60601-1-2:2015 (4th Ed.), 100%, 5000 ms |
A B 24V B, 48V B A B A B |
| Ring Wave | EN 61000-4-12, level 3, 1 kV DM, 2 kV CM | A |
| Voltage Fluctuations | EN 61000-4-14, Class 3 | A |
| 1) Power Supply Unit inside a dummy system | ||
| MECHANICAL DATA | ||
|---|---|---|
| Parameter | IMA-S2000-24 | IMA-S2000-48 |
| Dimensions (L x W x D) | 309.6 x 127 x 40.6 mm (12.2 x 5 x 1.6 in) | 309.6 x 127 x 40.6 mm (12.2 x 5 x 1.6 in) |
| Weight | 2 kg (4.4 lb) | 2 kg (4.4 lb) |
| Indicator | Green LED | Green LED |
| Cooling System1 | 2 fans with variable speed control | 2 fans with variable speed control |
| Acoustic Noise1 2 | < 39 dB(A) | < 39 dB(A) |
| AC/DC Input Terminal Block (J1) | Block M4 x 3 pins | |
| Main DC Output Terminal Block (J2) | Block M5 x 2 pins | |
| Auxiliary DC Output + Signals Port (J3) | Connector x 14 pins (Molex 501646-1400) | |
| Fan turned off in standby mode to reduce noise. Acoustic noise measured at 1 Hz to 20 kHz, 1 m distance, 100 Vac, 50% load, 30°C ambient. |
||
| 1) To keep the noise low the fan will be turned off in standby mode 2) At 1 Hz to 20 kHz and a distance of 1 m. Test conditions: 100 Vac, 50% load, ambient temperature 30°C (86°F) |
||
Selection Table
| Model Number | AC Input Voltage | DC Input Voltage | Main Output | Auxiliary Output |
|---|---|---|---|---|
| IMA-S2000-24-YVxxx | 80-275 Vac | 120-300 Vdc | 24 Vdc / 83.3 A | 5 Vdc / 2 A |
| IMA-S2000-48-YVxxx | 80-275 Vac | 120-300 Vdc | 48 Vdc / 41.6 A | 5 Vdc / 2 A |
| IMA-C2000-24-YVxxx | 80-275 Vac | 120-300 Vdc | 24 Vdc / 83.3 A | 5 Vdc / 2 A |
| IMA-C2000-48-YVxxx | 80-275 Vac | 120-300 Vdc | 48 Vdc / 41.6 A | 5 Vdc / 2 A |
| S = Standard version | C = Conformal coated version | All models include active current sharing and Remote ON/OFF | ||||

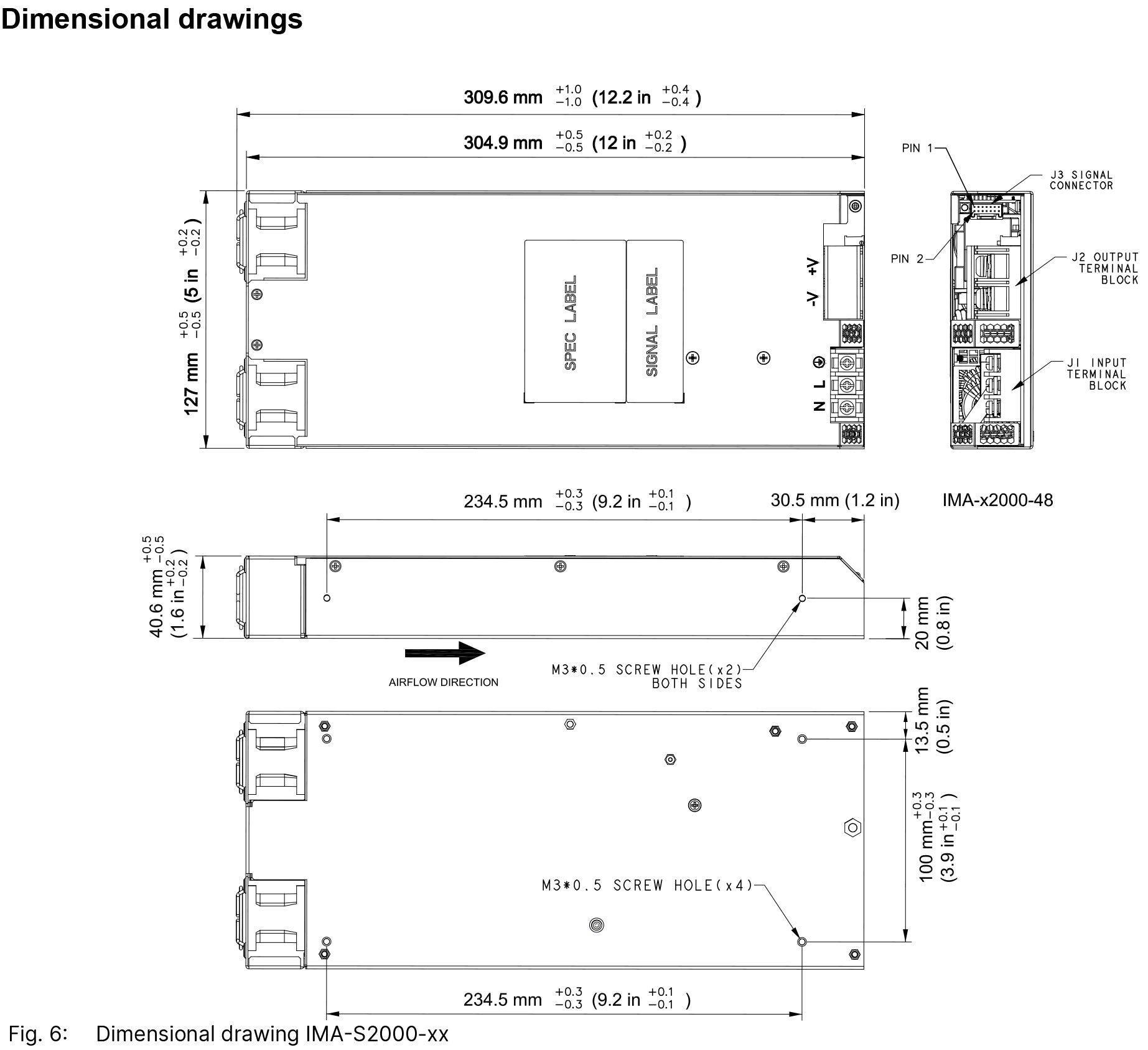

Technical Drawings
