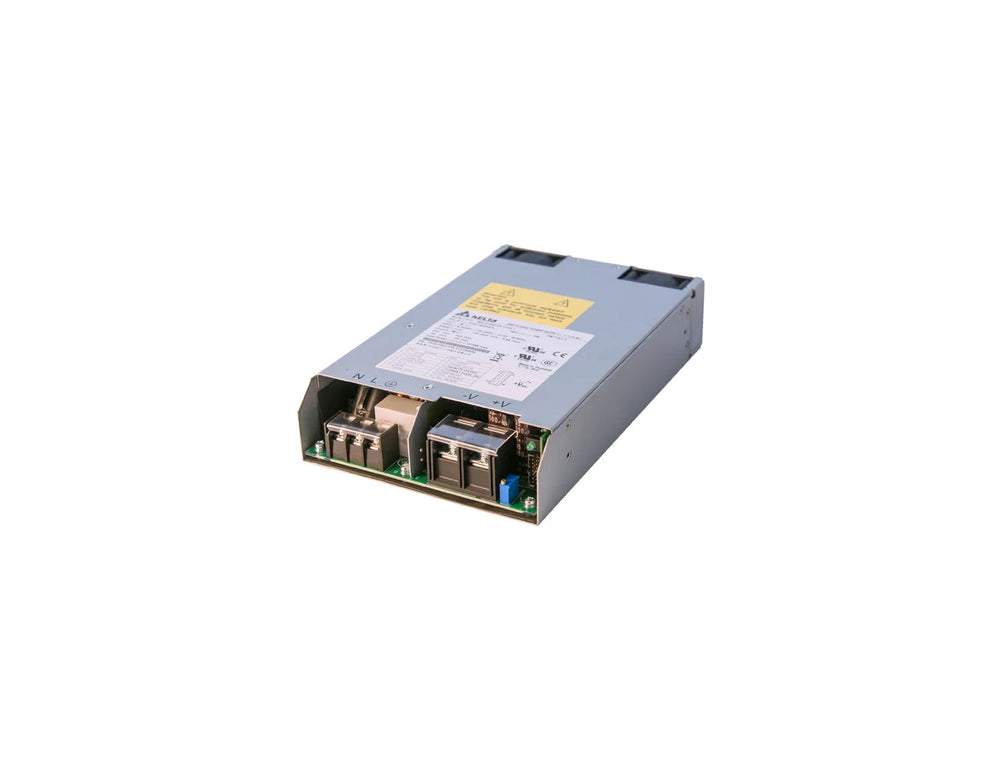

Delta Electronics IMA-S1000 Series 1000W Medical / Industrial AC-DC Power Supply
The Delta IMA-S1000 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main outputs together with a 5Vdc / 2A standby output and delivers up to 1000W output power in a compact 1...
Read MoreThe Delta IMA-S1000 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main outputs together with a 5Vdc / 2A standby output and delivers up to 1000W output power in a compact 1U design.
The Delta IMA-S1000 features include two fans with variable speed control, PMBus-compatible control and monitoring, remote ON/OFF, power good, remote sense, adjustable output voltage, 2 × MOPP isolation, and active current sharing. The IMA-S1000 family is designed for medical, industrial and IT systems where high efficiency, standby power and reliable redundant-capable operation are required.
Show Less
Features
- Input voltage range: 80–275Vac or 120–300Vdc.
- Output voltage: 12Vdc, 24Vdc or 48Vdc main output plus 5Vdc standby.
- Output current: up to 84A at 12V, 42A at 24V and 21A at 48V.
- Output power: 1000W maximum.
- Wide adjustable output voltage range of ±20%.
- 2 fans with variable speed control.
- Active current sharing.
- Remote ON/OFF, power good and remote sense supported.
- PMBus compatible for control, programming and monitoring.
- 2 × MOPP isolation.
- Low acoustic noise level of less than 39 dB(A).
- Designed for medical, industrial and IT applications.

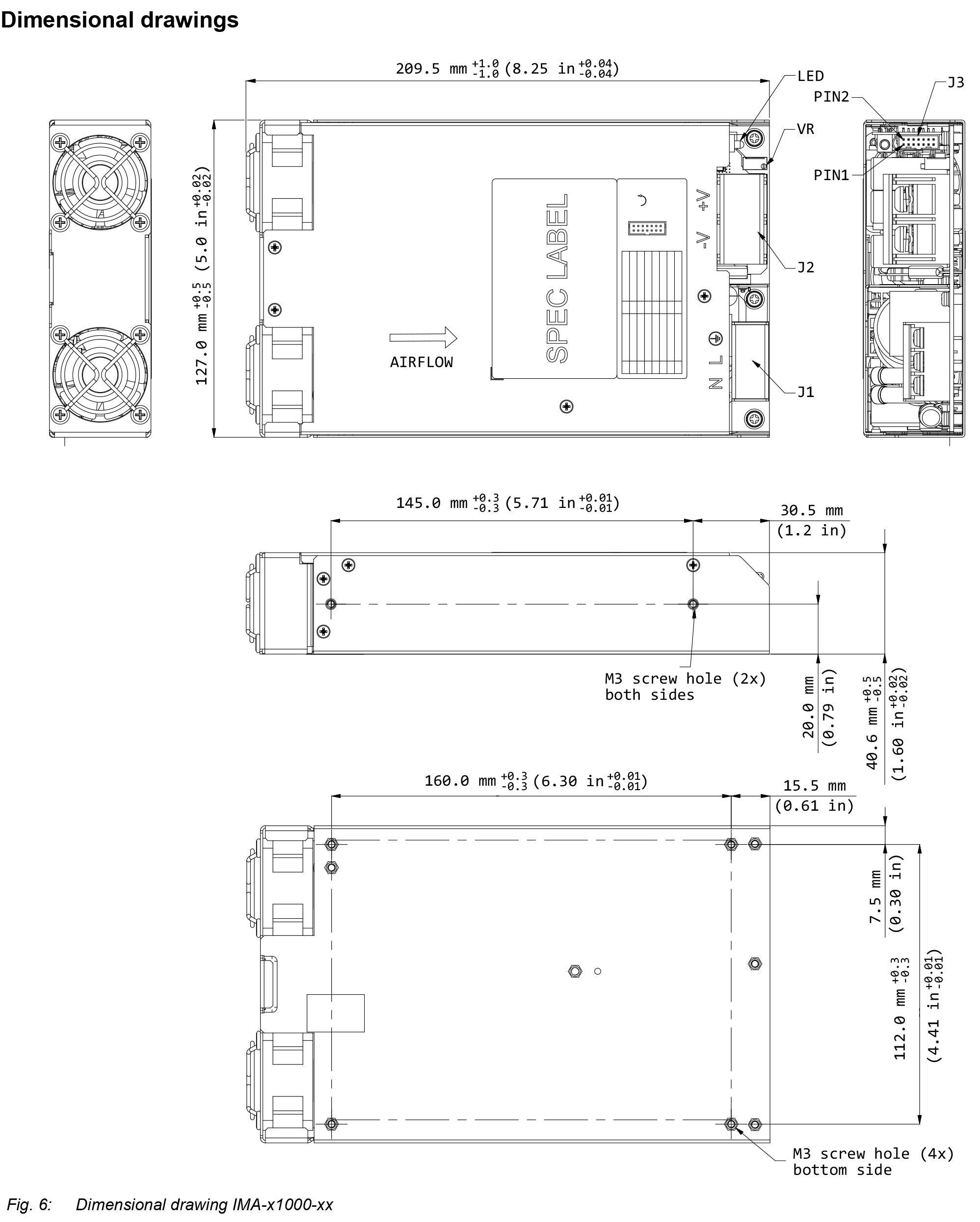

Technical Drawings
