Cosel TECS65F Series Open Frame AC/DC Power Supply

When board space is the constraint, the Cosel TECS65F Series fits where larger supplies can't. It's a compact open-frame AC/DC power supply in a 1" x 3" footprint just 1.1mm-PCB thin, delivering up to 65W from a universal 85-264VAC input — one part valid on any mains worldwide. Despite the size, protection is built in: inrush current limiting, o...

Read More

When board space is the constraint, the Cosel TECS65F Series fits where larger supplies can't. It's a compact open-frame AC/DC power supply in a 1" x 3" footprint just 1.1mm-PCB thin, delivering up to 65W from a universal 85-264VAC input — one part valid on any mains worldwide.

Despite the size, protection is built in: inrush current limiting, overcurrent protection and overvoltage protection are all on board, and the series is Class II rated, so no protective-earth connection is required. A harmonic attenuator brings IEC61000-3-2 compliance, and outputs of 5V, 12V, and 24V cover the common rails.

H-option models add a higher peak-current rating for 12V and 24V outputs — useful for short motor or capacitive surges — while the -Y option adds an output-adjust potentiometer (±10%) and -N adds a protective cover. Manufactured with SMD technology and backed by a 5-year warranty.

Show Less
Unit Price
—
or send a quick enquiry about this product only

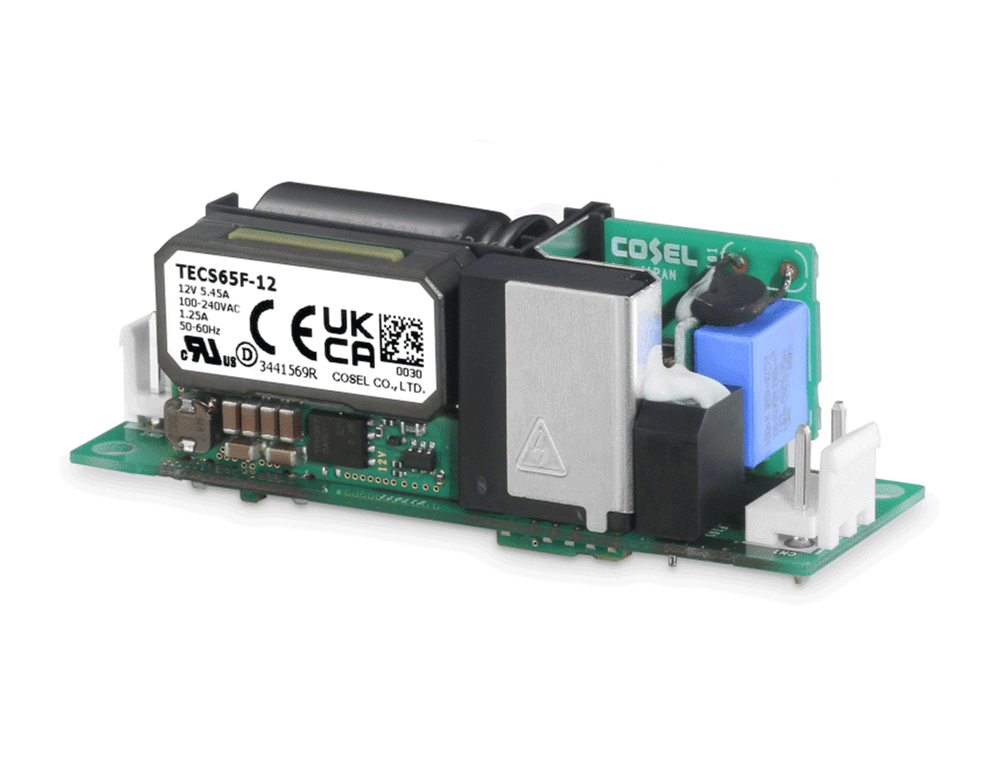

Cosel TECS65F-12 open-frame AC-DC power supply, 65W 12V output, board-mount unit with exposed PCB layout.
Features
  • Universal 85-264VAC input keeps one part number valid worldwide
  • Output models in 5V, 12V, and 24V
  • Up to 65W in a compact 1" x 3" open-frame footprint
  • Built-in inrush, overcurrent and overvoltage protection
  • Class II rated — no protective earth connection required
  • Harmonic attenuator for IEC61000-3-2 compliance
  • Optional H-version peak current (12V/24V), low-leakage (-E2) and cover (-N)
Downloads
Cosel_TECS65_Series_Datasheet.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The TECS65F is a 65W open-frame AC/DC power supply — the highest-power model in the Cosel TECS F-series — designed for PCB/bare-board integration in OEM equipment.
Contact Powerbox for the output voltage options in the TECS65F range.
Universal AC input (85–264Vac).
The TECS65F (65W) delivers 44% more output power than the TECS45F (45W), in the same open-frame design. Specify the TECS65F when the OEM equipment's power budget exceeds 45W.
Safety: UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1. EMC: built-in harmonic attenuator to IEC61000-3-2. Class II construction with no FG connection required. Options include low leakage current variant (suffix E2, for medical-environment proximity), output peak current boost on 12V and 24V models (suffix H), and a cover option (suffix N) for applications requiring mechanical protection. RoHS compliant. 5-year Cosel manufacturer's warranty.
OEM industrial instruments, embedded systems, medical-adjacent equipment, and any product requiring a compact, certified, open-frame AC/DC supply at 65W.
