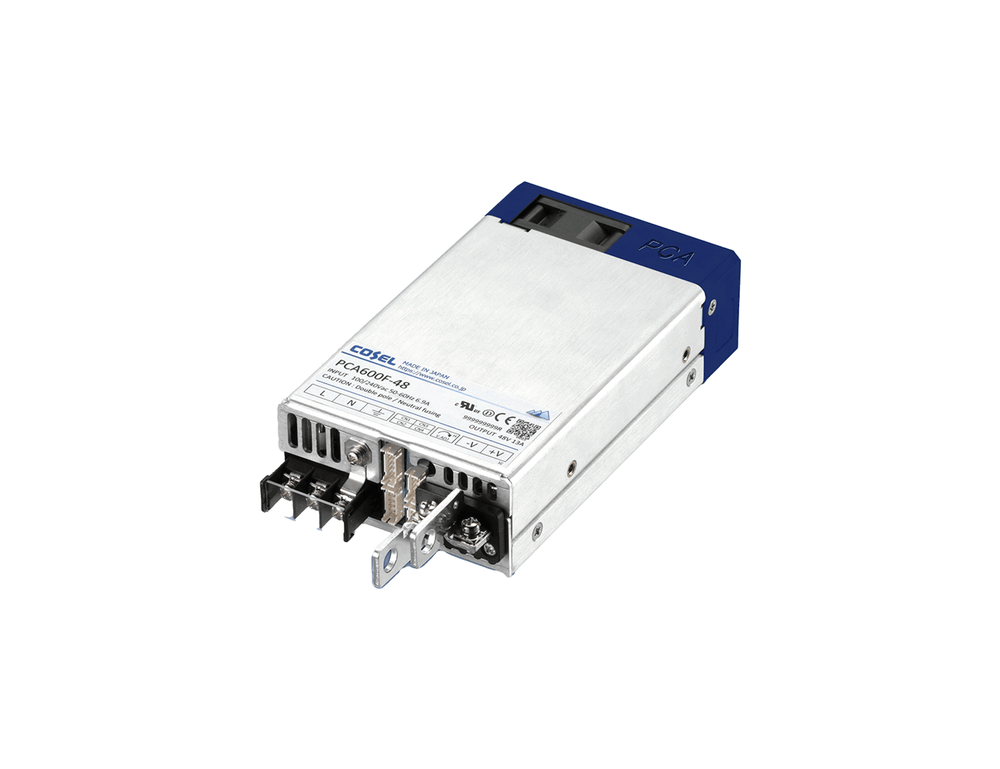

Cosel PCA600F Series Medical AC/DC Power Supply
The Cosel PCA600F answers a common problem: you need more power, but you don't have more rack space. It delivers a full 600W class in the exact same 89×41×152mm case and 0.84kg weight as the 300W PCA300F — doubling the output current without changing your mechanical layout or your 1U footprint.Like its smaller sibling, it carries 2MOPP medical i...
Read MoreThe Cosel PCA600F answers a common problem: you need more power, but you don't have more rack space. It delivers a full 600W class in the exact same 89×41×152mm case and 0.84kg weight as the 300W PCA300F — doubling the output current without changing your mechanical layout or your 1U footprint.
Like its smaller sibling, it carries 2MOPP medical isolation (4,000Vac input-to-output) with ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition approvals, and it accepts both a universal 85–264Vac input and an 88–370Vdc input for battery-backed installations (medical approvals apply to AC operation). Six output models from 5Vdc to 48Vdc scale up to 120A on the 5V unit, and the built-in constant-current function with near-0V adjustment makes it equally at home driving heavy logic rails or acting as a charging source.
Parallel and N+1 redundant operation are standard, supported by remote sensing, remote ON/OFF, DC-OK and alarm LEDs, and an Extended UART interface (optional PMBus). A 12V 0.1A auxiliary output powers supervision circuits, emissions meet EMI Class B, and Cosel backs the series with an up-to-5-year warranty.
Features
- Universal 85–264Vac input keeps one part number valid worldwide, with 88–370Vdc input capability
- Six output models from 5Vdc to 48Vdc, adjustable down to near 0V
- Up to 120A output with built-in constant current function
- 2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
- 41mm low-profile enclosed design fits a 1U rack space
- Parallel / N+1 redundant operation with Extended UART monitoring (optional PMBus)
- Optional UL508 approval for industrial control panels
