Cosel PCA1500F Series Medical AC/DC Power Supply

When the load list grows, the Cosel PCA1500F delivers a full 1500W — up to 300A on the 5V model — while still fitting a 41mm 1U rack height. It's the top of the PCA range, built for high-power medical and industrial systems that can't spare the vertical space a supply this capable would normally need, in a 140×41×203mm case weighing 2.0kg.The me...

Read More

When the load list grows, the Cosel PCA1500F delivers a full 1500W — up to 300A on the 5V model — while still fitting a 41mm 1U rack height. It's the top of the PCA range, built for high-power medical and industrial systems that can't spare the vertical space a supply this capable would normally need, in a 140×41×203mm case weighing 2.0kg.

The medical foundation is unchanged: 2MOPP isolation (4,000Vac input-to-output) with ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition approvals, across six output models from 5Vdc to 48Vdc. Because it operates close to its ceiling, output current is rated by line voltage — for example, the 24V model supplies 65A at 100Vac and 70A at 230Vac — so size your installation to the input you'll actually run. The built-in constant-current function and near-0V adjustment handle specialised and charging loads. This model runs from the universal 85–264Vac input only; DC input is not offered on the 1500W unit.

Parallel and N+1 redundant operation are standard, with remote sensing, remote ON/OFF, DC-OK and alarm LEDs, and an Extended UART interface (optional PMBus). A 12V 0.1A auxiliary output feeds supervision circuits, emissions meet EMI Class A for industrial deployment, and Cosel backs the series with an up-to-5-year warranty.

Show Less
Unit Price
—
or send a quick enquiry about this product only

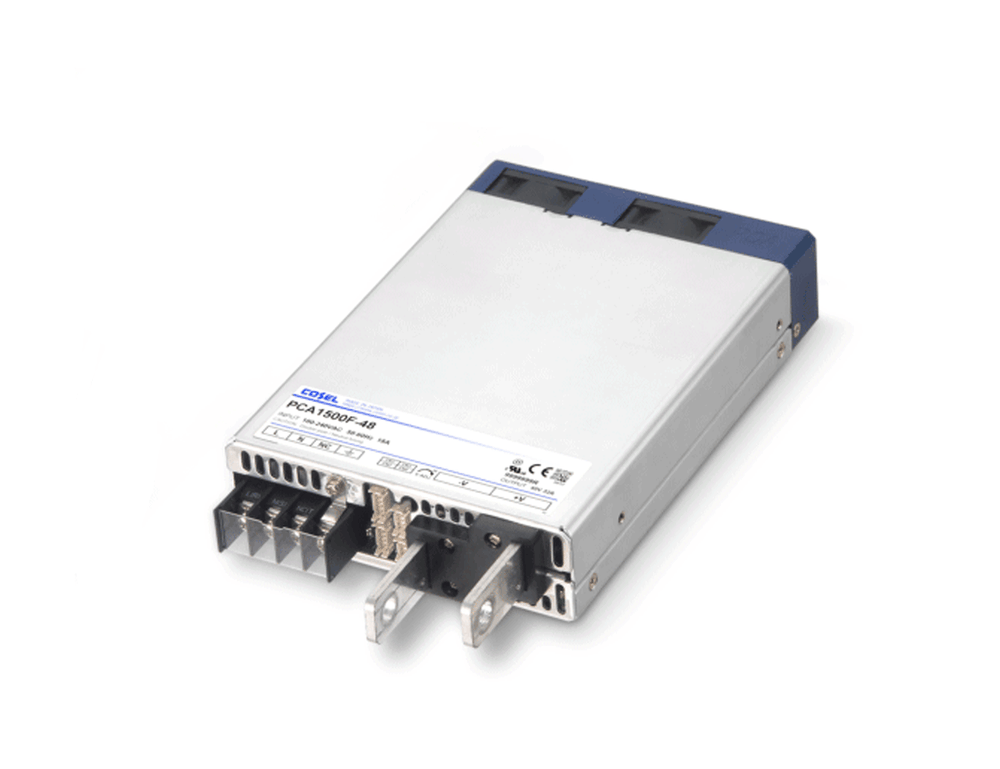

Cosel PCA1500F series enclosed AC/DC power supply, 1500W medical-grade unit with screw terminal block.
Features
  • Universal 85–264Vac input keeps one part number valid worldwide
  • Six output models from 5Vdc to 48Vdc, adjustable down to near 0V
  • Up to 300A output with built-in constant current function
  • 2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
  • 41mm low-profile enclosed design fits a 1U rack space
  • Parallel / N+1 redundant operation with Extended UART monitoring (optional PMBus)
Downloads
Cosel_PCA1500F_Series_Datasheet.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs
The PCA1500F is a 1500W medical-grade AC/DC power supply from Cosel — the highest-power model in the PCA F-series — certified to IEC 60601-1 for demanding medical equipment.
Safety: UL62368-1, C-UL (CSA62368-1), EN62368-1 (ITE/AV safety); plus ANSI/AAMI ES60601-1 and EN60601-1 3rd edition for medical electrical equipment, with 2×MOPP (Means of Patient Protection) input-to-output isolation. CE and UKCA marking. Optional UL508 (industrial control equipment) approval available. EMC: EN55032 Class A (PCA300F/600F), EN55011 Class A / CISPR32 Class A / FCC Class A (PCA1000F/1500F), with full IEC60601-1-2 and EN61000-4 immunity suite. Cosel provides a 5-year manufacturer's warranty on PCA series products.
Five output voltages: 5Vdc, 12Vdc, 15Vdc, 24Vdc, 32Vdc, and 48Vdc — the same selection as the PCA300F, PCA600F, and PCA1000F. The PCA1500F at 1500W is the highest-power model in the Cosel PCA medical series. An AUX output (12V, 0.1A, adjustable 5–12V) is also included for control logic.
The PCA1500F uses a built-in forced air cooling fan in a low-profile enclosed chassis at 41mm height (1U rack compatible). Operating temperature is -20°C to +70°C. The 1U format makes it suitable for rack-integrated medical and industrial equipment. Contact Powerbox at sales@powerbox.com.au for dimensional drawings.
The PCA1500F (1500W) delivers 50% more power than the PCA1000F (1000W). Specify the PCA1500F for medical equipment with the highest continuous power demands.
High-power medical imaging, surgical equipment, diagnostic systems, and other medical devices requiring a certified internal power supply at 1500W.
