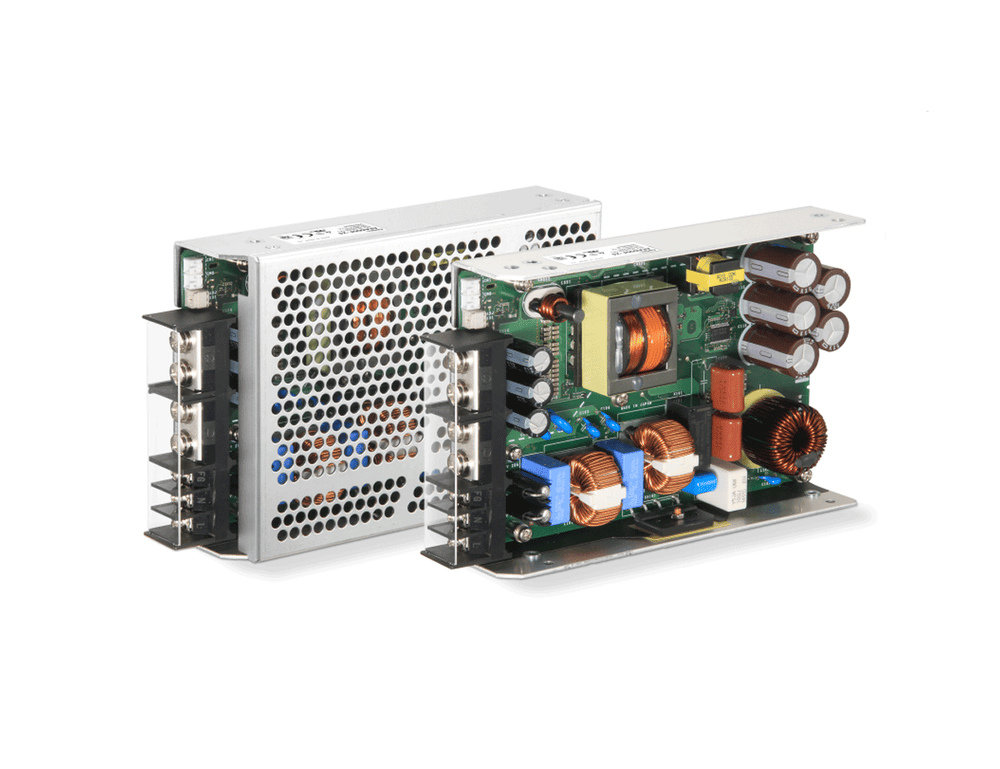

Cosel AEA600F Series Medical AC/DC Power Supply
Medical loads rarely draw steady current — pumps, compressors and motorised stages demand short bursts well above their running load. The Cosel AEA600F Series is built for exactly that: a 600W-class medical AC/DC power supply rated for peak currents more than double its continuous output (up to 52.5A peak), so you can size for the running load i...
Read MoreMedical loads rarely draw steady current — pumps, compressors and motorised stages demand short bursts well above their running load. The Cosel AEA600F Series is built for exactly that: a 600W-class medical AC/DC power supply rated for peak currents more than double its continuous output (up to 52.5A peak), so you can size for the running load instead of the worst-case spike and save cost, space and weight.
Safety credentials match the performance. With 2MOPP input-output and 1MOPP output-FG isolation, the AEA600F is suitable for BF applied-part applications under ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition, with OVC III per EN62477-1 and SEMI F47 compliance for installation flexibility. A universal 85-264VAC input and output models from 24VDC to 48VDC keep one platform valid across global product lines.
Because there is no internal fan, the supply runs silently on convection cooling — ideal for patient-proximate and laboratory environments — or delivers its full forced-air ratings when system airflow is available. Options include alarms (PR/PG), remote ON/OFF, 12V and 5V auxiliary outputs, MODBUS interface, conformal coating and a protective cover, all backed by a 5-year warranty.
Show Lessor send a quick enquiry about this product only
Features
- Universal 85-264VAC input keeps one part number valid worldwide
- Output models from 24VDC to 48VDC with wide adjustment range
- Up to 25A continuous output with peak ratings to 52.5A for pulse and motor loads
- 2MOPP input-output and 1MOPP output-FG isolation — suitable for BF applied parts
- Silent fanless convection cooling, with higher forced-air ratings available
- OVC III (EN62477-1) and SEMI F47 compliant for flexible installation
- Optional alarms, remote ON/OFF, 12V/5V auxiliary outputs and MODBUS interface
Specifications
| QUICK REFERENCE | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Max Output Wattage [W] | 600 | 601 | 601.2 | 600 |
| DC Output (forced air, ACIN 100V) | 24Vdc 20.0 (Peak 42.0) | 32Vdc 15.0 (Peak 31.5) | 36Vdc 13.4 (Peak 28.0) | 48Vdc 10.0 (Peak 21.0) |
| DC Output (forced air, ACIN 230V) | 24Vdc 25.0 (Peak 52.5) | 32Vdc 18.8 (Peak 39.4) | 36Vdc 16.7 (Peak 35.0) | 48Vdc 12.5 (Peak 26.3) |
| INPUT CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Input Voltage [Vac] | 85–264, single phase (output derating required at 85–170V — refer to derating curves) | |||
| Input Current [A] – ACIN 100V (rated load) | 5.7typ (Io=20A) | 5.7typ (Io=15.0A) | 5.7typ (Io=13.4A) | 5.7typ (Io=10A) |
| Input Current [A] – ACIN 230V (rated load) | 2.9typ (Io=25A) | 2.9typ (Io=18.8A) | 2.9typ (Io=16.7A) | 2.9typ (Io=12.5A) |
| Input Frequency [Hz] | 50/60 (45–66) | |||
| Efficiency [%] – ACIN 100V (rated load) | 92.0typ | 92.0typ | 92.0typ | 92.0typ |
| Efficiency [%] – ACIN 230V (rated load) | 94.5typ | 95.0typ | 95.0typ | 95.0typ |
| Power Factor – ACIN 100V | 0.98typ | |||
| Power Factor – ACIN 230V | 0.95typ | |||
| Inrush Current [A] – ACIN 100V 2 | 20/40typ (Io=20A) | 20/40typ (Io=15.0A) | 20/40typ (Io=13.4A) | 20/40typ (Io=10A) |
| Inrush Current [A] – ACIN 230V 2 | 40/40typ (Io=25A) | 40/40typ (Io=18.8A) | 40/40typ (Io=16.7A) | 40/40typ (Io=12.5A) |
| Leakage Current [mA] | 0.3max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1) | |||
| 2. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded. | ||||
| OUTPUT CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Output Voltage [V] | 24 | 32 | 36 | 48 |
| Output Current [A] – ACIN 100V, convection | 14.0 (Peak 42.0) | 10.5 (Peak 31.5) | 9.4 (Peak 28.0) | 7.0 (Peak 21.0) |
| Output Current [A] – ACIN 100V, forced air | 20.0 (Peak 42.0) | 15.0 (Peak 31.5) | 13.4 (Peak 28.0) | 10.0 (Peak 21.0) |
| Output Current [A] – ACIN 230V, convection | 17.5 (Peak 52.5) | 13.2 (Peak 39.4) | 11.7 (Peak 35.0) | 8.8 (Peak 26.3) |
| Output Current [A] – ACIN 230V, forced air | 25.0 (Peak 52.5) | 18.8 (Peak 39.4) | 16.7 (Peak 35.0) | 12.5 (Peak 26.3) |
| Line Regulation [mV] max | 96 | 144 | 144 | 192 |
| Load Regulation [mV] max | 150 | 240 | 240 | 300 |
| Ripple [mVp-p] max – 0 to +50°C 3 | 120 | 200 | 200 | 200 |
| Ripple [mVp-p] max – -20 to 0°C 3 | 200 | 300 | 300 | 350 |
| Ripple Noise [mVp-p] max – 0 to +50°C 3 | 150 | 270 | 230 | 250 |
| Ripple Noise [mVp-p] max – -20 to 0°C 3 | 230 | 350 | 350 | 500 |
| Temperature Regulation [mV] max – 0 to +50°C | 240 | 360 | 360 | 480 |
| Drift [mV] max 4 | 96 | 144 | 144 | 192 |
| Start-up Time [ms] | 550typ (ACIN 100V/230V) / 750typ (ACIN 85V–264V) | |||
| Hold-up Time [ms] | 20typ (ACIN 230V, Io=100%) | |||
| Output Voltage Adjustment Range [V] | 21.6–26.4 | 28.8–35.2 | 32.4–39.6 | 43.2–52.8 |
| Output Voltage Setting [V] | 23.5–24.5 | 31.0–33.0 | 35.0–37.0 | 47.0–49.0 |
| 3. Measured by 20MHz oscilloscope or Ripple-Noise meter (equivalent to KEISOKUGIKEN:RM104). Please refer to the instruction manual 1.8. 4. Drift is the change in DC output for an eight hours period after a half-hour warm-up at 25°C. |
||||
| PROTECTION CIRCUIT AND OTHERS | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Overcurrent Protection 5 | Works over 101% of peak current and recovers automatically | |||
| Overvoltage Protection [V] | 30–33.6 | 43.0–48.4 | 45–50.4 | 60–69.6 |
| Alarm | Optional (input voltage alarm: PR, output voltage alarm: PG) | |||
| Remote ON/OFF | Optional | |||
| AUX1 | Optional (12V 1A, forced air) | |||
| AUX2 | Optional (5V 1A, forced air) | |||
| 5. When the overcurrent protection continues, the output may be shut down. | ||||
| ISOLATION | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Input–Output (PR, PG, RC, AUX) 6 | AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP | |||
| Input–FG | AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||
| Output (PR, PG, RC, AUX)–FG 6 | AC1,500V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||
| Output–AUX1, PR, PG, RC, AUX2 6 | AC100V 1 minute, cutoff current = 25mA; DC100V 10MΩ min (at room temperature) | |||
| 6. Applicable when AUX and remote control (optional) is added. | ||||
| ENVIRONMENT | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Operating Temperature, Humidity & Altitude | -20 to +70°C, 20–90%RH (non-condensing), altitude 5,000m (16,500 feet) max. Refer to derating curves | |||
| Storage Temperature, Humidity & Altitude | -20 to +75°C, 20–90%RH (non-condensing), altitude 9,000m (30,000 feet) max | |||
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis | |||
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis | |||
| SAFETY AND NOISE REGULATIONS | ||||
|---|---|---|---|---|
| Parameter | AEA600F-24 | AEA600F-32 | AEA600F-36 | AEA600F-48 |
| Agency Approvals | UL62368-1, ANSI/AAMI ES60601-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1, CAN/CSA-C22.2 No.60601-1), EN62368-1, EN60601-1 3rd, EN62477-1 (OVC III), UL508 (Optional), complies with IEC60601-1-2 4th Ed. | |||
| Conducted Noise | Complies with FCC Part 15 Class B, VCCI-B, CISPR32-B, EN55011-B, EN55032-B | |||
| Harmonic Attenuator 7 | Complies with IEC61000-3-2 (Class A) | |||
| 7. Please contact us about another class. • Sound noise may be generated by power supply in case of pulse load. |
||||
| FEATURE CHARACTERISTICS | |
|---|---|
| Parameter | Details |
| Peak Current Capability | Rated for peak currents more than double continuous output (refer to per-model current ratings) |
| Series / Parallel Operation | Series and parallel operation possible |
| Communication Function | MODBUS interface optional (-I4, with subfeatures) |
| SEMI F47 | Complies (refer to Instruction Manual) |
| Overvoltage Category | OVC III according to EN62477-1 |
| GENERAL | |
|---|---|
| Parameter | Details |
| Case Size (W × H × D) | 41 × 127 × 186mm [1.61 × 5 × 7.32 inches] (W × H × D) (without terminal block) |
| Weight | 1.0kg max (with cover: 1.1kg max) |
| Cooling Method | Convection / forced air |
| Warranty | 5 years (refer to Instruction Manual) |
Selection Table
| Model | Output Voltage | Output Current (forced air, ACIN 100V) | Output Current (forced air, ACIN 230V) | Max Output Wattage |
|---|---|---|---|---|
| AEA600F-24 | 24V | 20.0A (Peak 42.0A) | 25.0A (Peak 52.5A) | 600W |
| AEA600F-32 | 32V | 15.0A (Peak 31.5A) | 18.8A (Peak 39.4A) | 601W |
| AEA600F-36 | 36V | 13.4A (Peak 28.0A) | 16.7A (Peak 35.0A) | 601.2W |
| AEA600F-48 | 48V | 10.0A (Peak 21.0A) | 12.5A (Peak 26.3A) | 600W |
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
FAQs
The AEA600F is a 600W medical-grade AC/DC power supply from Cosel's AEA F-series, certified to IEC 60601-1, designed for medical devices requiring compact, high-efficiency power conversion.
Safety: UL62368-1, C-UL (CSA62368-1), EN62368-1; plus ANSI/AAMI ES60601-1 and EN60601-1 3rd edition with 2×MOPP isolation for medical electrical equipment. The AEA600F also complies with IEC60601-1-2 4th edition (EMC for medical equipment), and IEC60335-1 (household and similar electrical appliances safety). CE and UKCA marking. EMC emissions to EN55032 and FCC Class B; immunity to EN61000-4 series. 5-year Cosel manufacturer's warranty.
Both are Cosel medical-grade power supply families certified to IEC 60601-1. The AEA series and PCA series may differ in mechanical form factor, cooling, power density, or output configuration. Contact Powerbox for a direct comparison to suit your design requirements.
Contact Powerbox for the output voltage models in the AEA600F range.
Contact Powerbox for efficiency data. Cosel AEA series supplies are designed for high efficiency in continuous medical duty.
The AEA600F (600W) and AEA800F (800W) are siblings in the Cosel AEA F-series. Select based on device power requirement.
