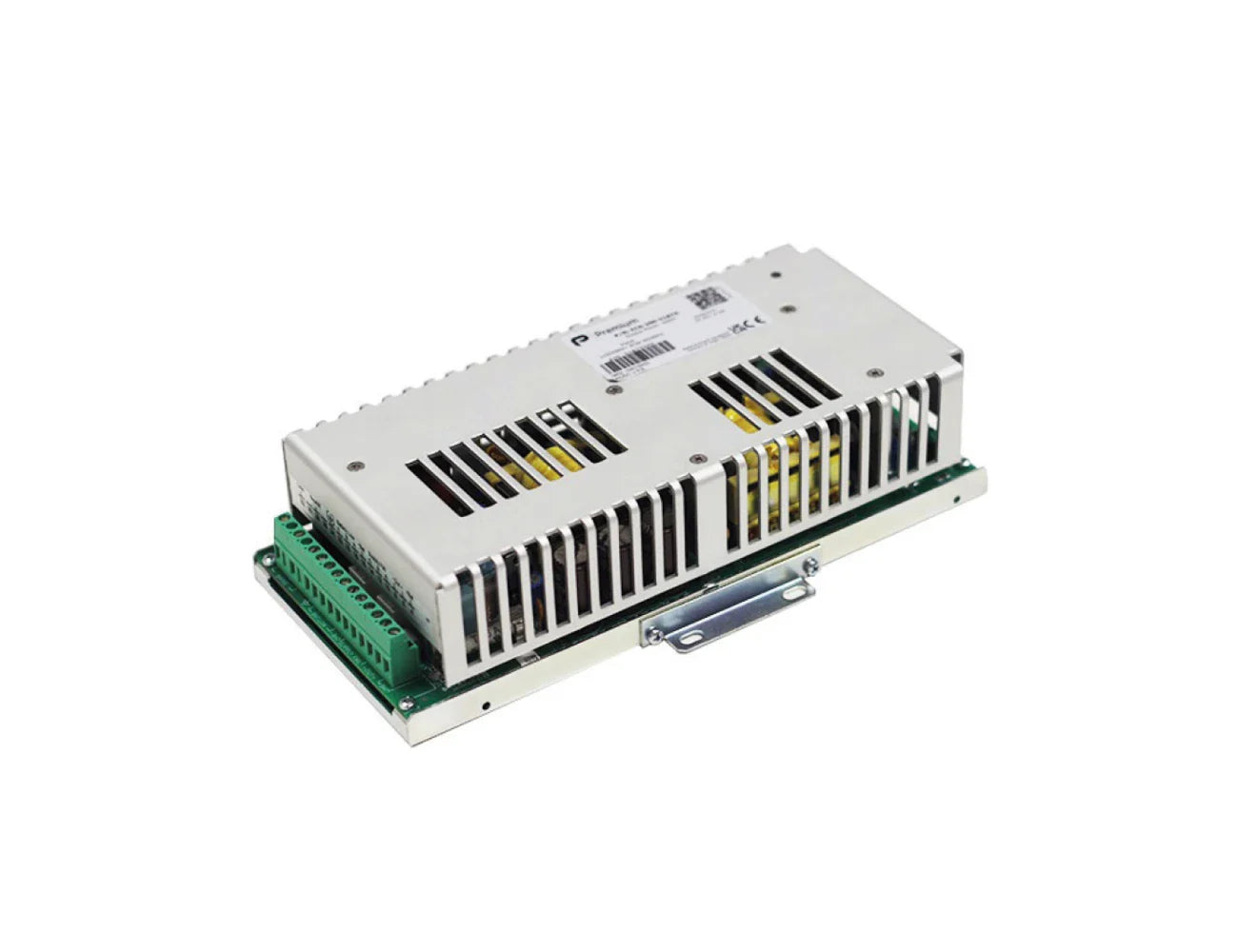

PREMIUM ECS-200 SERIES Battery Charger / DC UPS
The Premium ECS-200 Series is a high-performance DC Uninterruptible Power Supply (DC UPS) and battery charger, engineered to deliver continuous and reliable 12V, 24V, or 48V DC power. Designed for critical backup applications, it ensures uninterrupted operation by instantly switching from mains supply to battery without voltage dips - protecting...
Read MoreThe Premium ECS-200 Series is a high-performance DC Uninterruptible Power Supply (DC UPS) and battery charger, engineered to deliver continuous and reliable 12V, 24V, or 48V DC power. Designed for critical backup applications, it ensures uninterrupted operation by instantly switching from mains supply to battery without voltage dips - protecting your equipment during power outages.
Ideal for industrial, telecommunications, and automation applications, the ECS-200 Series supports lead-acid batteries with capacities up to 48Ah, 24Ah, and 12Ah respectively, depending on voltage selection.
Why Choose the Premium ECS-200 Series?
- Reliable Backup Power – Ensures uninterrupted power during outages without voltage dips.
- Versatile Charging Capability – Supports 12V, 24V, and 48V battery systems with adjustable charging currents.
- Rugged Industrial Design – Operates from -25°C to +70°C with high vibration and thermal resilience.
- Space-Saving Footprint – Compact 100 x 220 x 45mm casing for easy integration into tight spaces.
- Certified Safety and EMC Compliance – Designed and tested to international standards including IEC60950-1, IEC62368-1, IEC61000-6-2, and IEC61000-6-4.
- Extended Product Life – High MTBF of 350,000 hours at 40°C, ensuring long-term reliability and reduced maintenance.
Typical Applications:
- Industrial process control systems
- Telecommunications base stations and hubs
- Remote monitoring and telemetry systems
- Traffic management and signalling infrastructure
- Security and access control systems
- Emergency lighting systems
- Renewable energy storage and backup solutions
- Automation and SCADA systems
Features
- Continuous Power Assurance: Step mains-to-battery transition without output voltage drops, safeguarding sensitive equipment.
- Smart Battery Management: Constant current charging with four selectable current levels to optimise battery health and lifespan.
- Advanced Protection Systems: Integrated protections against overloads, short circuits, and deep battery discharge, with automatic battery cut-off.
- Comprehensive Alarm Outputs: Relay-based alarms for supply failure and low battery status for proactive monitoring.
- Flexible Installation: Parallel connection supported (24V and 48V models) with optional accessories for DIN rail or rack mounting.
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 /220 Vac ± 20% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Mains frequency range | 47 … 63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current | <32A | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage range | -0, +20%Von | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Line regulation |
< 0,2% |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Ripple |
< 50 mVpp |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Charging current tolerance |
< 10% |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
StorageTemperature |
-25ºC … 80ºC |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | -25 … 50ºC (Po=nom) | ||||||||||||||||||||||||||||||||||||||||||||||||
| -25 … 70ºC (Po=nom/2) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Relative humidity | 95% with no condensation | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF | 350.000h @ 40°C according to IEC61709 | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Emission |
EN61000-6-3, EN 50212-4 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Immunity |
EN61000-2-2, EN 50212-4 |
||||||||||||||||||||||||||||||||||||||||||||||||
| SAFETY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Safety |
EN-60950-1, EN68368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Input/Output |
3000Vac, 50Hz 1 min |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Input / Earth |
2000Vac (1500Vac for model 5183) 50Hz 1 min |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Output / Earth |
2000Vac (1500Vac for model 5183) 50Hz 1 min |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Weight |
780g |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Size |
100 x 220 x 45 mm |
||||||||||||||||||||||||||||||||||||||||||||||||
| CONTROL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Supply fail alarm |
Mains failure, overload or power supply fault |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery low alarm |
Discharge, ageing or short-circuit |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarms |
Relay contacts |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum switching voltage: |
120Vac / 24Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum switching power: | 100VA / 24W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum switching current: | 1A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum switching value: | 1mA @ 1V | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Against overloads and short-circuits |
Current limiting |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery protection against deep discharges |
Battery cut off |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery protection against overloads |
By fuse |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Against Input over-currents |
Input fuse |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| OUTPUT | BATTERY | CHARGING CURRENT SELECTION | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL |
NOMINAL VOLTAGE (V) |
MAX CURRENT (A) |
MAX POWER (W) |
FLOATING VOLTAGE (V) |
CUT OFF VOLTAGE (V) |
I1(A) | I2(A) | I3(A) | I4(A) |
|
ECS-200-5183 |
12 | 14.7 | 200 | 13.6 | 10 | 2.00 |
2.4 |
4.8 |
9.6 |
|
ECS-200-5187 |
24 | 8.30 | 225 | 27.2 | 20 | 1.00 |
1.2 |
2.4 |
4.8 |
|
ECS-200-5189 |
48 | 4.20 | 230 | 54.4 | 40 | 0.44 |
0.6 |
1.2 |
2.4 |

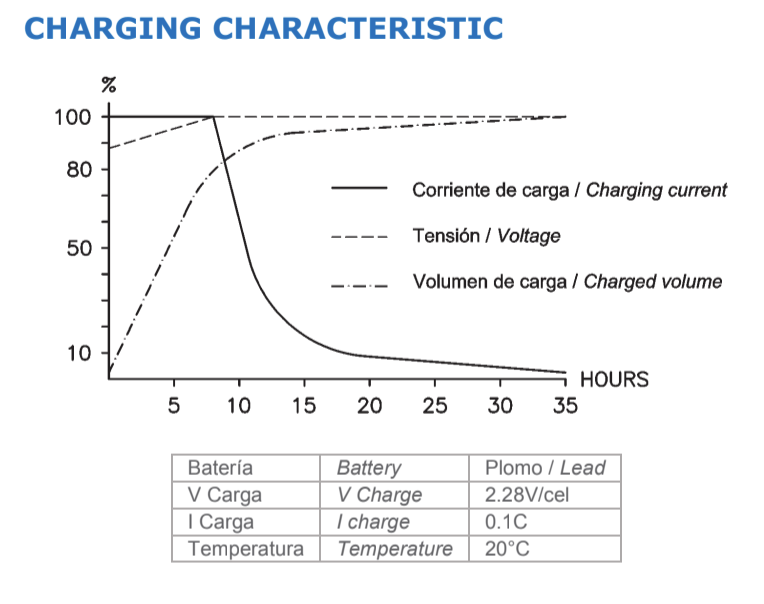

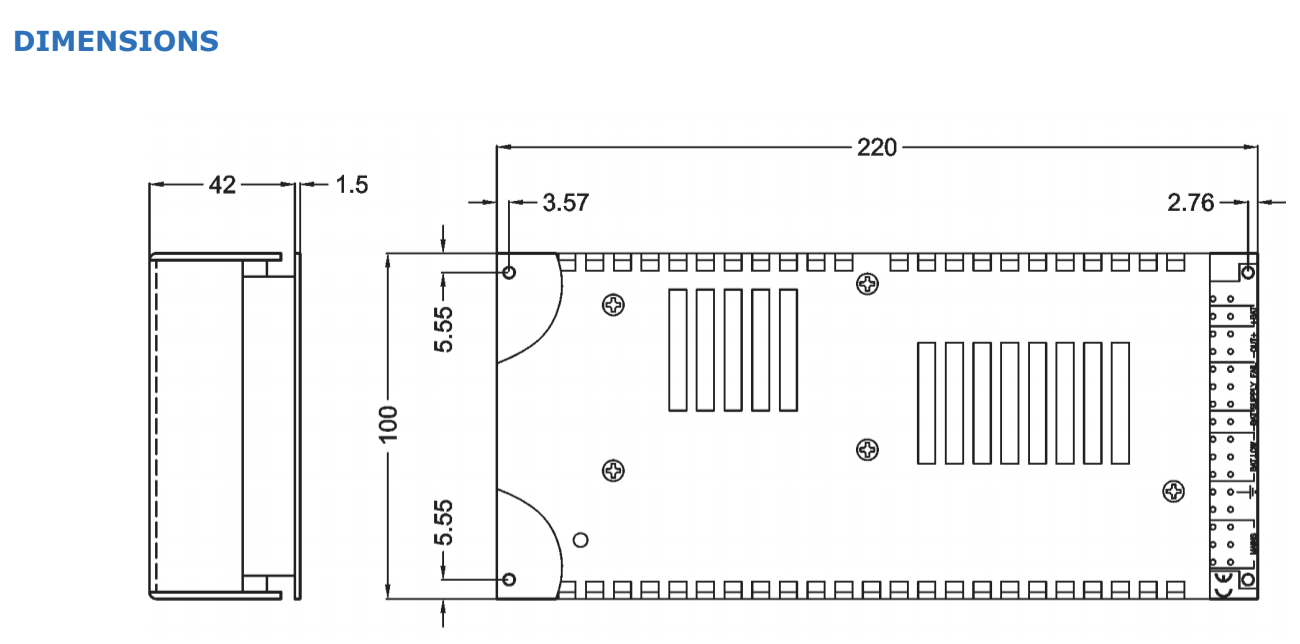

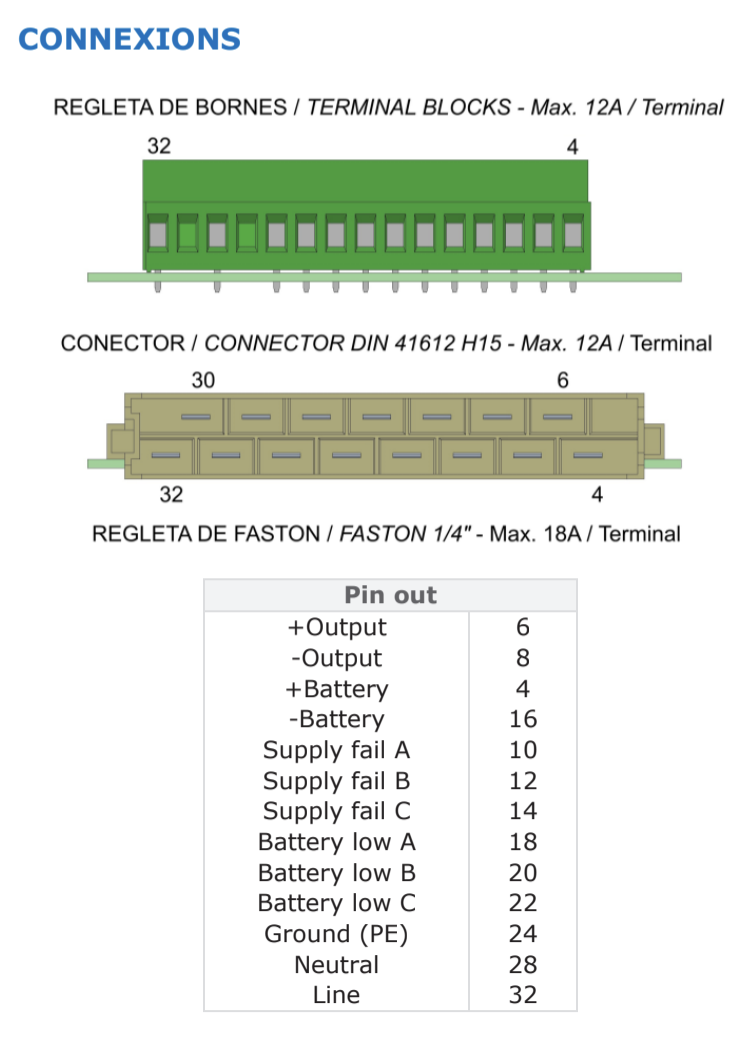

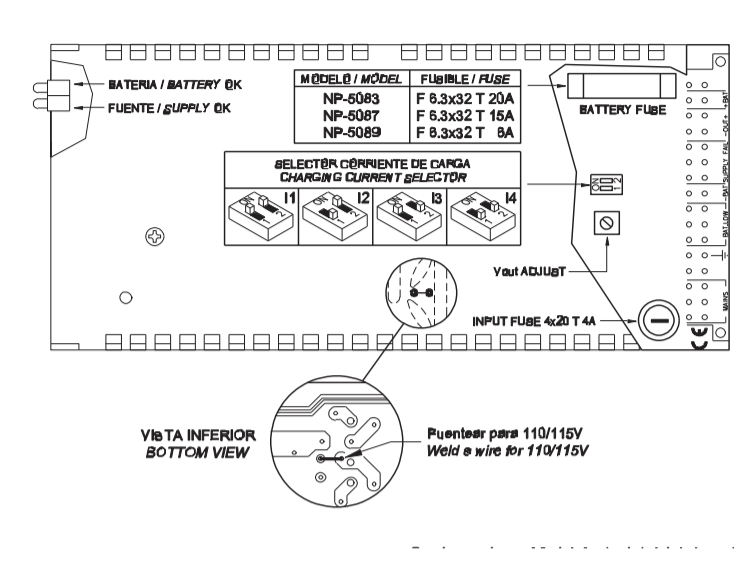

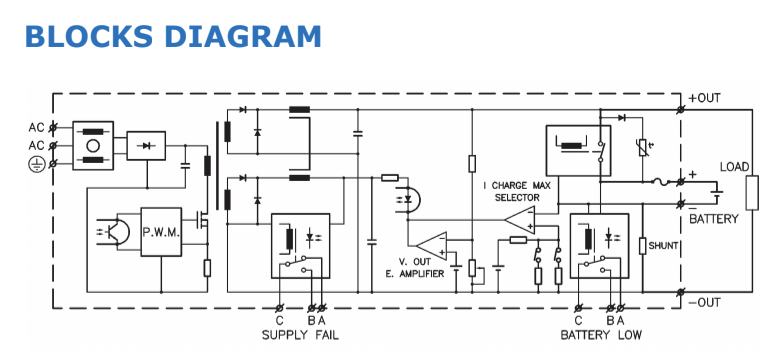

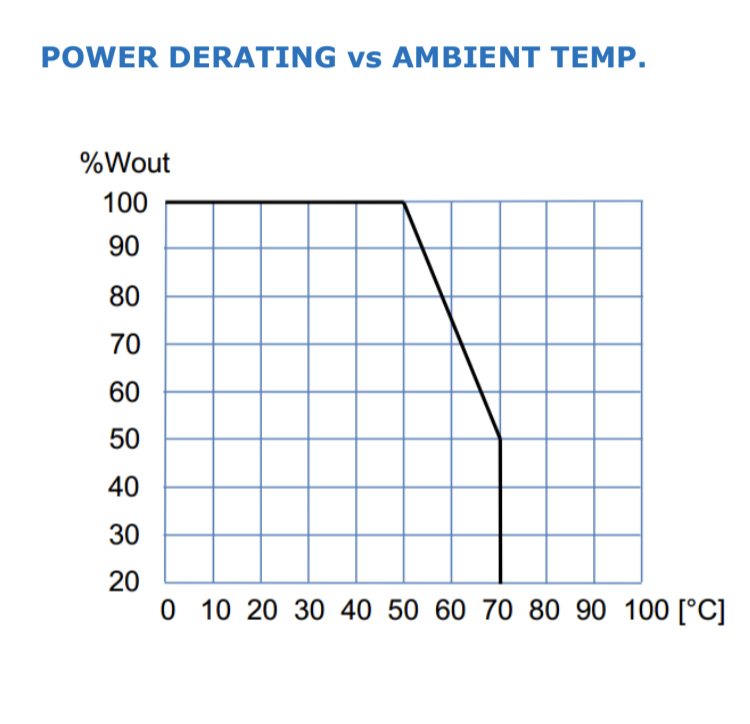

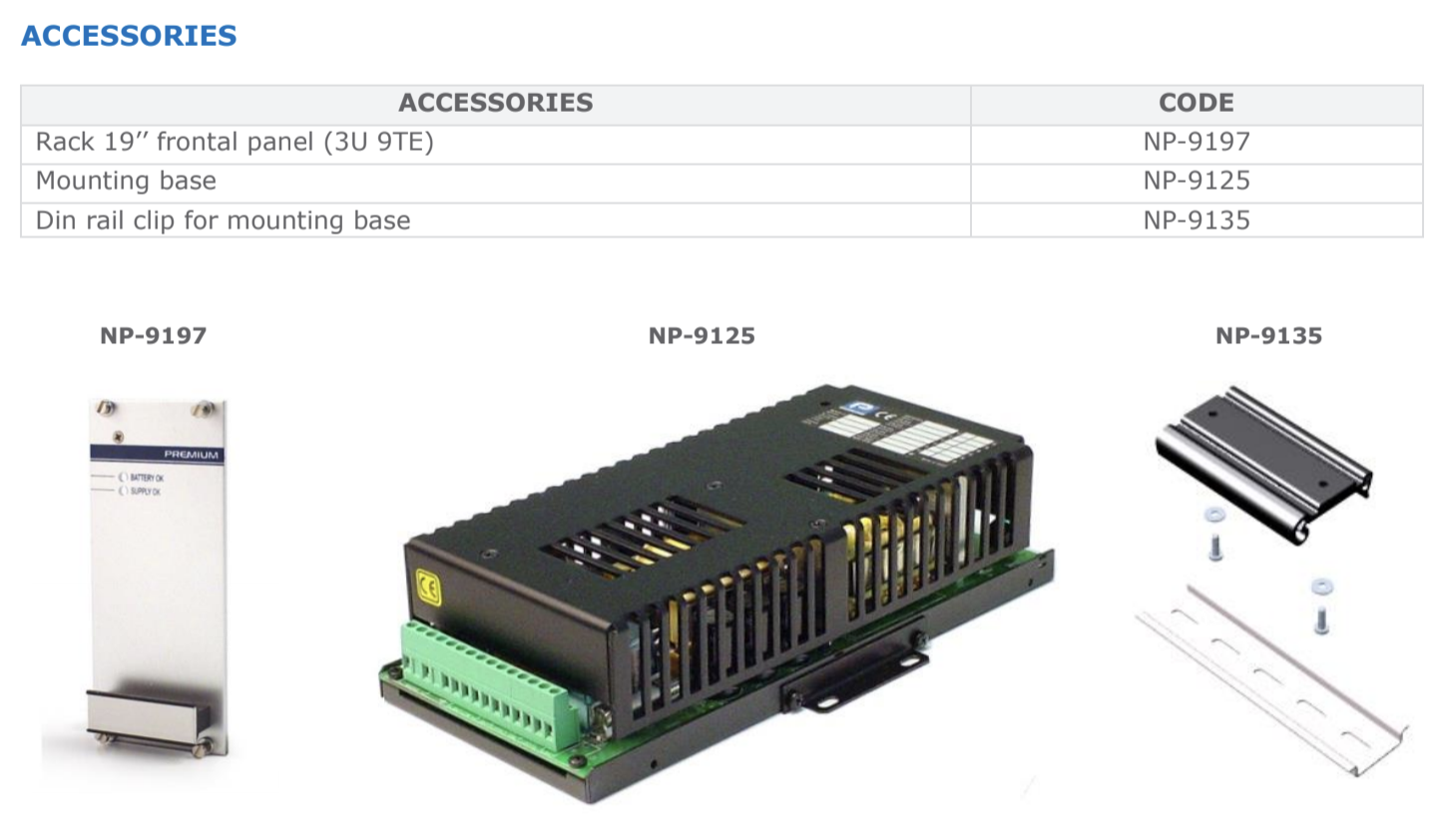

Technical Drawings
