Delta Electronics Sync DRS-24V30W1AZ AC/DC Power Supply

The Delta Electronics Sync Series DRS-24V30W1AZ is an ultra-compact 24 Vdc DIN-rail power supply designed for industrial applications where space and reliability are critical.

Read More

View Models

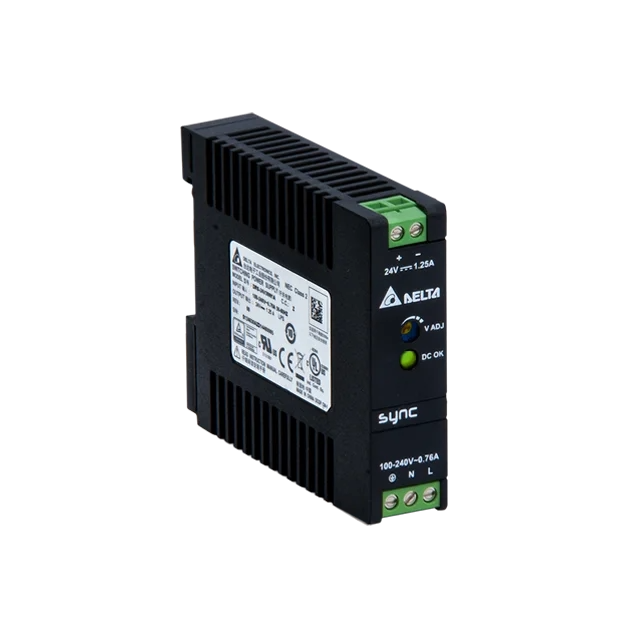

Delta_Electronics_DRS-24V30W1AZ

Features

  • Compact DIN rail design with reinforced isolation. Ultra compact footprint with galvanic isolation rated up to 3.0 kVac between input and output, suitable for dense control panels and safety-critical circuits
  • Wide input voltage with reliable operation in harsh environments. Supports universal AC input and delivers full rated output across a broad operating temperature range from -10°C to +55°C, making it well suited to industrial cabinets and field installations
  • High efficiency for reduced heat and energy loss. Delivers efficiency of up to 88 percent, helping minimise heat build-up inside enclosures and improving long-term reliability
  • Low earth leakage for sensitive installations. Designed with earth leakage current below 0.5 mA at 240 Vac, supporting compliance in installations with strict leakage limits
  • NEC Class 2 and Limited Power Source compliant. Certified to NEC Class 2 and LPS requirements, simplifying approval for control, automation, and safety-related applications
  • Comprehensive built-in protection. Integrated overvoltage, overcurrent, and overtemperature protection helps safeguard connected loads and reduce downtime
Specifications
INPUT RATINGS/CHARACTERISTICS
Model Number DRS-24V30W1AZ
Nominal Input Voltage 100-240 Vac
Input Voltage Range 85-264 Vac
Nominal Input Frequency 50...60 Hz
Input Frequency Range 47...63 Hz
Input Current < 0.80 A @ 115 Vac, < 0.40 A @ 230 Vac
Efficiency at 100% Load 88.0% typ. @ 230 Vac
Max. Power Dissipation No load < 0.5 W @ 115 Vac & 230 Vac
100% load < 2.5 W @ 115 Vac & 230 Vac
Max Inrush Current (Cold Start) 20 A typ. @ 3 x 400 Vac, 25 A typ, @ 3 x 500 Vac
Power Factor at 100% Load < 30 A @ 115 Vac ,< 60 A @ 230 Vac
Leakage Current < 0.5 mA @ 240 Vac
OUTPUT RATINGS/CHARACTERISTICS*
Model Number DRS-24V30W1AZ
Nominal Output Voltage 24 Vdc
Factory Set Point Tolerance 24 Vdc ± 1%
Output Voltage Adjustment Range 21.6-26.4 Vdc
Output Current 1.25 A (30 W max.)
Output Power 30 W
Line Regulation < 1% typ. (@ 85-264 Vac, 100% load)
Load Regulation < 1% typ. (@ 85-264 Vac, 0-100% load)
PARD** (20MHz) < 150 mVpp @ > 0°C to 70°C
< 500 mVpp @ 0°C to -20°C
Rise Time < 50 ms @ nominal input (100% load)
Start-up Time < 3,000 ms @ 115 Vac (100% load)
< 1,600 ms @ 230 Vac (100% load)
Hold-up Time > 20 ms @ 230 Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage) ± 5% @ 85-264 Vac input, 0-50% load, 50-100%
(Slew Rate: 0.1 A/μs, 50% duty cycle @ 5 Hz to 100 Hz)
Start-up with Capacitive Loads 3,000 μF Max
*For power de-rating from < -10°C to -20°C, and 55°C to 70°C, see power de-rating on page 3.
**PARD is measured with an AC coupling mode, 5 cm wires, and in parallel with 0.1 μF ceramic capacitor & 47 μF electrolytic capacitor.
MECHANICAL
Model Number DRS-24V30W1AZ
Case Cover / Chassis Plastic
Dimensions (H x W x D) 75 x 21 x 89.5 mm (2.95 x 0.83 x 3.52 inch)
Unit Weight 0.10 kg (0.22 lb)
Indicator Green LED DC OK
Cooling System Convection
Terminal Input 3 Pins (Rated 300 V/16 A)
Output 2 Pins (Rated 300 V/16 A)
Wire Input / Output AWG 26-12
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Noise (1 Meter from power supply) Sound Pressure Level (SPL) < 25 dBA
ENVIRONMENT
Model Number DRS-24V30W1AZ
Surrounding Air Temperature Operating -20°C to +70°C
  Storage -40°C to +85°C
Power De-rating Temperature -10°C to -20°C de-rate power by 5% / °C
> 55°C de-rate power by 3.33% / °C
Operating Humidity 5 to 95% RH (Non-Condensing)
Operating Altitude 0 to 2,000 Meters (6,560 ft.)
Shock Test Non- Operating IEC60068-2-27, Half Sine Wave: 50 G for a duration of 11 ms, 3 times per direction
Operating IEC 60068-2-27, Half Sine Wave: 10 G for a duration of 11 ms, 1 shock for X direction
Vibration Non- Operating IEC 60068-2-6, Random: 5-500 Hz; 2.09 Grms, 20 min per axis for all X, Y, Z directions
Operating IEC 60068-2-6, Sine Wave: 10-500 Hz @ 19.6 m/S² (2G peak); 10 min per cycle, 60 min for X direction
Over Voltage Category II
Pollution Degree 2
PROTECTIONS
Model Number DRS-24V30W1AZ
Overvoltage < 34.8 V, SELV Output, Auto-Recovery
Overload / Overcurrent 110-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery when the fault is removed)
Over Temperature Auto-Recovery
Short Circuit Auto-Recovery when the fault is removed
Internal Fuse at L pin T3.15A
Degree of Protection IP20
Protection Against Shock Class I with PE* connection
*PE: Primary Earth
RELIABILITY DATA
Model Number DRS-24V30W1AZ
MTBF Telcordia
SR-332		 > 700,000 hrs, I/P: 100 Vac, O/P: 100% load, Ta: 25°C
Expected Cap Life Time 10 years (230 Vac, 50% load @ 40°C)
SAFETY STANDARDS/DIRECTIVES
Model Number DRS-24V30W1AZ
Safety Entry Low Voltage SELV (IEC 60950)
Electrical Safety TUV Bauart EN 60950-1
UL/cUL recognized UL 60950-1, CSA C22.2 No. 60950-1(File No. E131881)
CB Scheme IEC 60950-1, Limited Power Source (LPS)
Industrial Control Equipment UL/cUL listed UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)
Class 2 Power Supply UL/cUL recognized UL 60950-1, CSA C22.2 No. 60950-1(File No. E131881)
CE In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
UKCA In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091
Galvanic Isolation Input to Output 3.0 KVac
Input to Ground 1.5 KVac
Output to Ground 0.5 KVac
EMC
Model Number DRS-24V30W1AZ
Emissions (CE & RE) Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4 CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
Immunity Generic Standards: EN/BS EN 55024
Electrostatic Discharge IEC 61000-4-2

Criteria A¹⁾

Air Discharge: 8 kV(Level 3)


Contact Discharge: 8 kV
Radiated Field IEC 61000-4-3

Level 3 Criteria A¹⁾


80 MHz-1 GHz, 10 V/M with 1 kHz tone / 80% modulation
Electrical Fast Transient / Burst IEC 61000-4-4

Level 3 Criteria A¹⁾

4 kV
Surge IEC 61000-4-5

Level 4 Criteria A¹⁾

Common Mode²⁾: 4 kV

Differential Mod³⁾: 2 kV
Conducted IEC 61000-4-6 Level 3 Criteria A¹⁾
150 kHz – 80 MHz, 10 Vrms
Power Frequency Magnetic Fields IEC 61000-4-8 Criteria A¹⁾
1 A/meter
Voltage Dips and Interruptions IEC 61000-4-11 > 100% dip; 1 cycle (20 ms)
Voltage Fluctuation and Flicker IEC/EN/BS EN 61000-3-3
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
Technical Illustrations

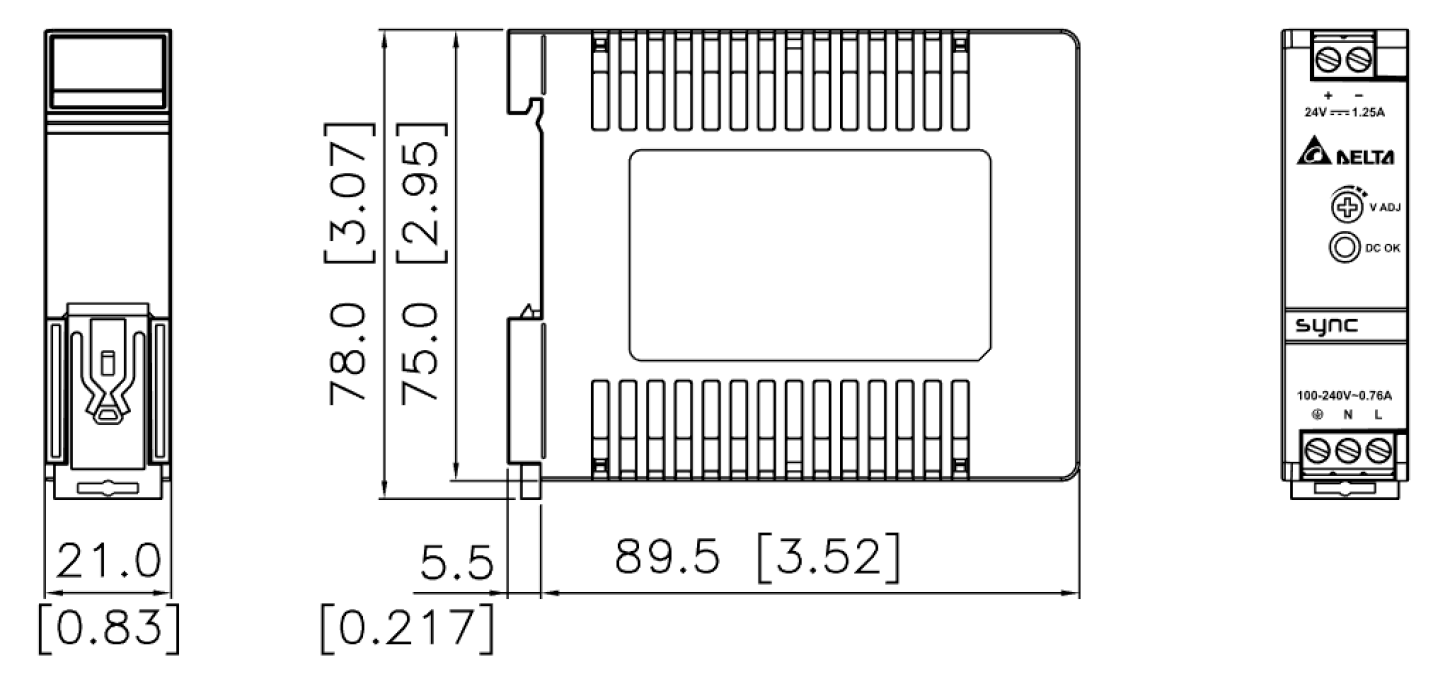

GA_Drawing_DRS-24V30W1AZ
