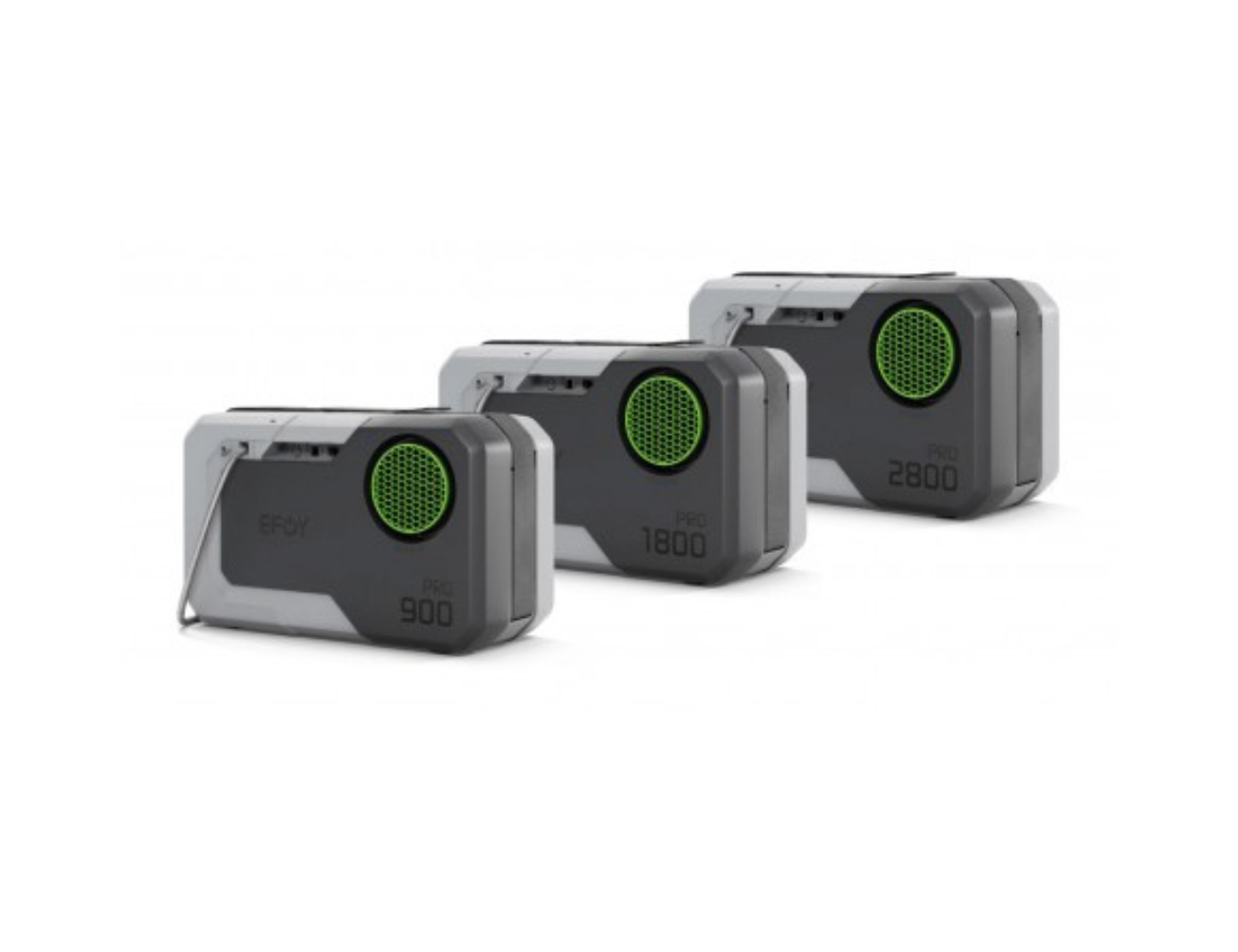

SFC Energy EFOY Pro 900 / 1800 / 2800 Fuel Cells

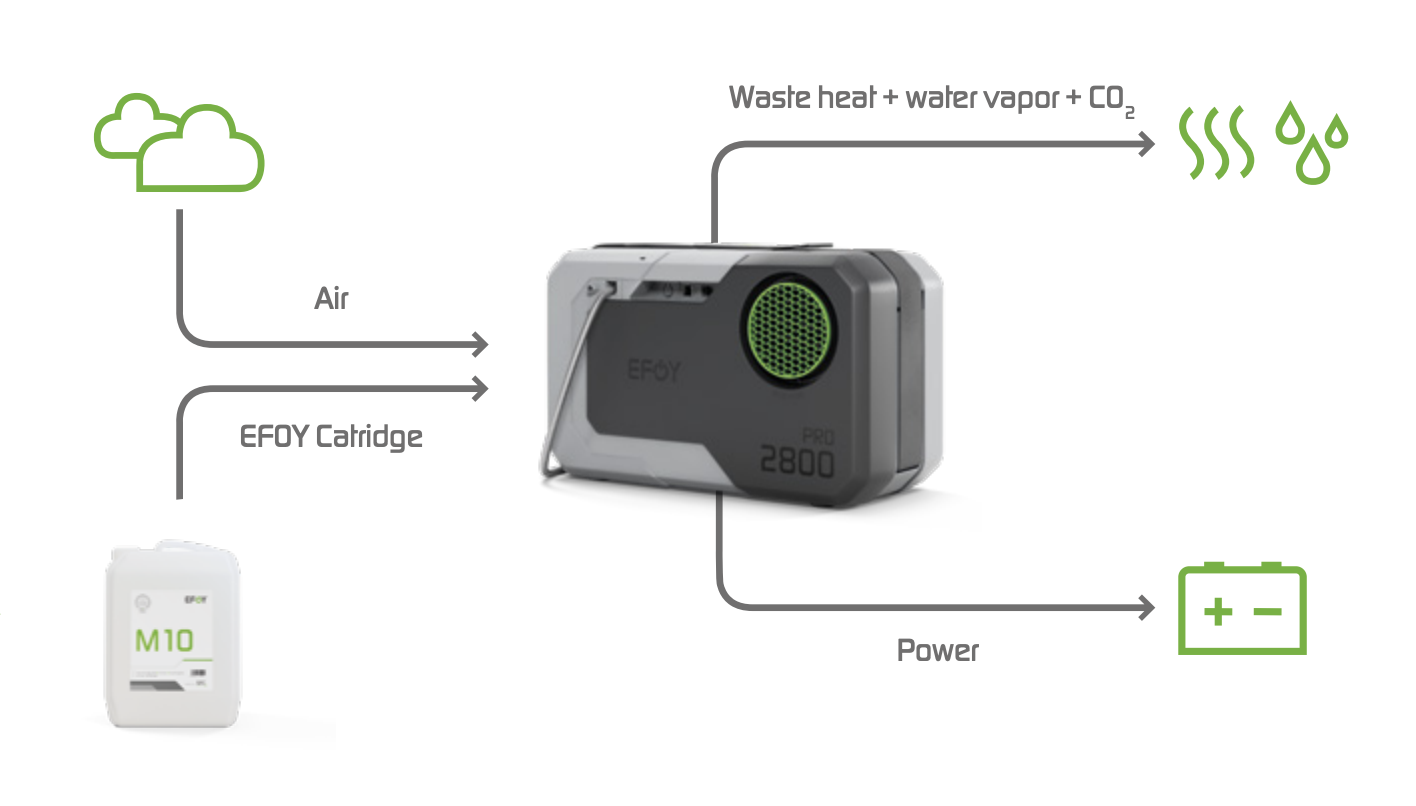

Reliable off-grid power, whenever and wherever you need it. As a trusted distributor of SFC Energy solutions across Australia and New Zealand, Powerbox is proud to offer the EFOY Pro Series 900, 1800, and 2800 — a proven range of direct methanol fuel cells delivering reliable, clean, and maintenance-free off-grid power for mission-critical applications.
Read More
Features
- Max. output power: 125W (500W Daisy Chained)
- Dimensions (L x W x H): 448 x 198 x 275 mm
- 100% reliable
- Autonomous low maintenance
- Environmentally friendly and quiet
- Lightweight and compact
| General Technical Data for EFOY Fuel Cells | EFOY PRO 900 | EFOY PRO 1800 | EFOY PRO 2800 |
|---|---|---|---|
| Nominal voltage | Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V | ||
| Acceptable battery types | Lead: 2 V cells: 6S (12 V) und 12S (24 V) LiFePO4: 3.2 V cells: 4S (12.8 V) und 8S (25.6 V) | ||
| Consumption4 | 0.91 / kWh | ||
| Connectable cartridges | 1 (up to 8 with EFOY Fuel Manager) | ||
| Length fuel cartridge connector | 75 cm / 29.5 in | ||
| Weight | 6.5 kg | 7.2 kg | 7.8 kg |
| Dimensions (L × W × H) | 448 x 198 x 275mm | ||

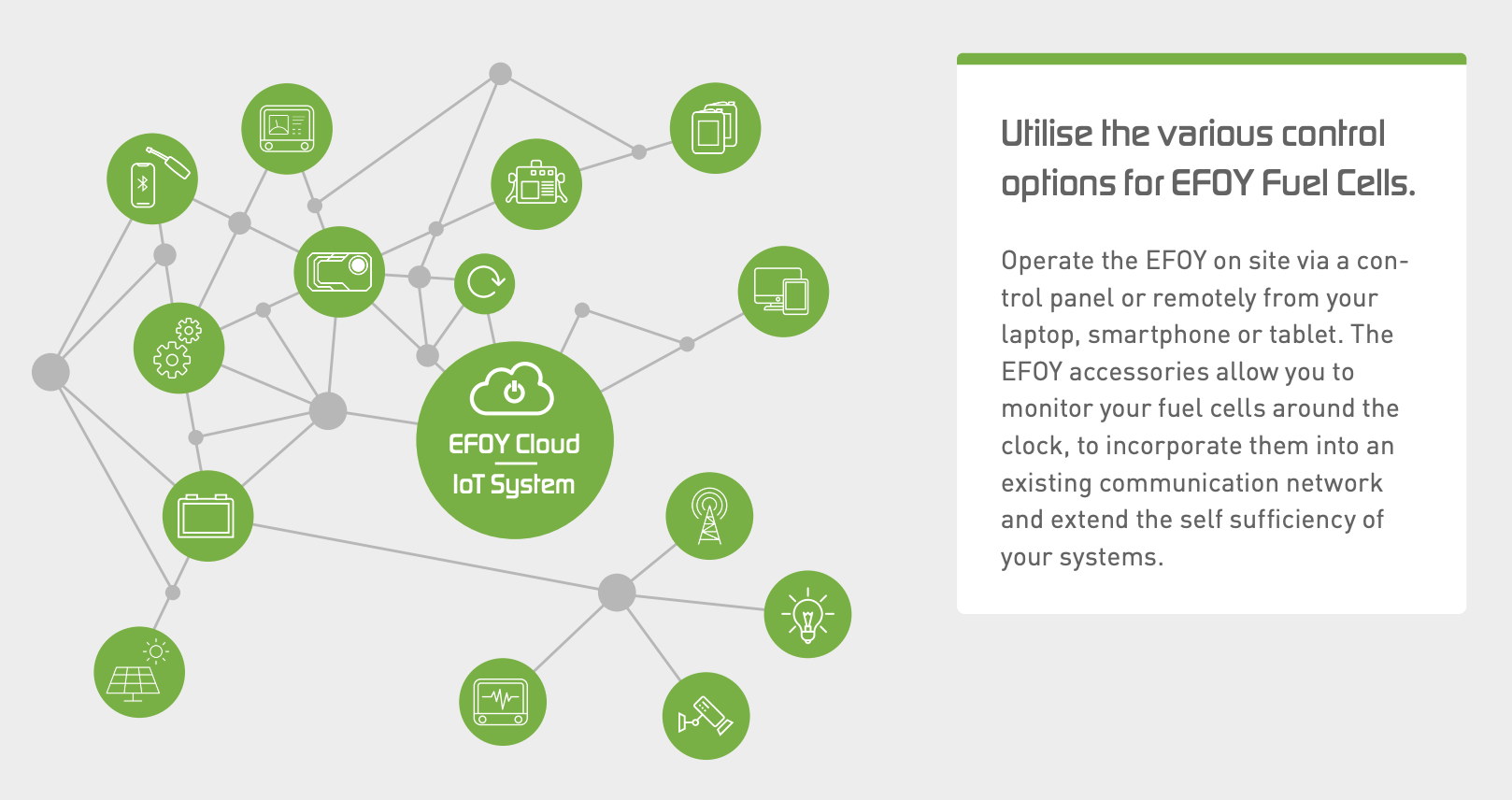

| User interface | Push button and LED optional 4,3” TFT Display optional Bluetooth adapter – EFOY App optional Ethernet connection to EFOY Cloud | ||
| Data interface | RJ-12 socket (CAN & RS232) for the use of accessories RJ-45 socket (Ethernet) | ||
| Communication protocol | MODBUS TCP; clear text protocol (SIO commands) Secured MQTT protocol to EFOY Cloud | ||
| Electrical interface | 4-pin Plug for EFOY charging cablePower: Positive (+) and negative (-) terminals: 4 mm² (AWG 12)Sense: Positive (+) and negative (-) terminals: 0.75 mm² (AWG 20) | ||
| Electrical interface for EFOY accessory | Positive (+) and negative (-) terminals: min 0.75 mm² (AWG 20) / max 2.5 mm² (AWG 14) Available voltage: battery voltage / Max. current: 2 A (external fuse needed | ||
| Noise level5 at 1 m | < 45 dB (A) | < 48 dB (A) | < 50 dB (A) |
| Minimal installation space (L x D x H) | EFOY Fuel Cell only: 510 x 320 x 290 mm | ||
| Inclination along the roll axis | permanent: max. 35° | ||
| Inclination along the lateral axis | permanent: max. 35° | ||
| Operating temperature | -20 °C to +50 °C / -4 °F to +122 °F | ||
| Start-up temperature | +3 °C to +50 °C / +37 °F to +104 °F | ||
| Storage temperature | +1 °C to +50 °C / +34 °F to +122 °F | ||
| International Protection (IP-Class) | IP 21 | ||
| Altitude | From approx. 2000 m above sea level there is a reduction in performance possible | ||
| Warranty | 24 months within 3.000 operating hours | ||
1 All performance data apply to the connection of the charging cable to the EFOY.
2 The output power varies by ± 10% and decreases with the operating hours, depending on the installation situation and the operating conditions.
3 Operation still possible after 3000 h, no guaranteed power output.
4 Effective consumption depends on operating conditions and hours.
5 Different noises may occur due to different components.
6 The output power may be reduced at temperatures above +35 °C / 95 °F (EFOY) and +42 °C / 108 °F (EFOY Pro). At temperatures below 0 ° C, charging lithium batteries (LiFePO4) may not always be possible. Follow the instructions from the battery manufacturer.
7 Warranty conditions: “Warranty_EFOY 80_150_EFOY_Pro 900_1800_2800” apply
| FUEL CELLS | EFOY PRO 900 | EFOY PRO 1800 | EFOY PRO 2800 | |||
|---|---|---|---|---|---|---|
| 12 V | 24 V | 12 V | 24 V | 12 V | 24 V | |
| Max. output* | 42 W | 42 W | 82 W | 82 W | 125 W | 125 W |
| Output Power2 within 3.000 hours | 34 W | 32 W | 68 W | 65 W | 105 W | 100 W |
| Output Power2 within 6.000 hours | 28 W | 27 W | 56 W | 53 W | 87 W | 83 W |
| Max. Charging current @ 10.5 V | 4.0 A | - | 7.8 A | - | 11.9 A | - |
| Max. Charging current @ 21.0 V | - | 2.0 A | - | 3.9 A | - | 6.0 A |
| Recommended minimal battery capacity lead batteries | 40 Ah | 20 Ah | 60 Ah | 30 Ah | 80 Ah | 40 Ah |
| Maximum adjustable battery capacity lead batteries | 800 Ah | 400 Ah | - | - | - | - |
| Recommended minimal battery capacity LiFePO4 batteries | 20 Ah | 10 Ah | 30 Ah | 15 Ah | 40 Ah | 20 Ah |
| Maximum adjustable battery capacity LiFePO4 batteries | 600 Ah | 300 Ah | - | - | - | - |
| Quiescent consumption | 0.5 W | 0.6 W | - | - | - | - |
| FUEL CARTRIDGES | M10 | M28* | MT60 |
|---|---|---|---|
| Volume |
10 litres |
28 litres |
60 litres |
| Weight |
8.4 kg |
23.4 kg |
55 kg |
| Nominal Capactity |
11.1 kWh |
31.1 kWh |
66.7 kWh |
| Autonomy @ 50W |
222 h |
622 h |
1320 h |
| Orientation |
Only in upright postion |
In upright position and on the side, with valve upside |
Only in upright position |
| Dimensions |
230 x 193 x 318 mm |
370 x 285 x 395 mm With M28 Adapter: 370 x 285 x 425 mm |
340 x 390 x 670 mm |
*M28 adapter required
| General Technical Data for EFOY Fuel Cells | EFOY PRO 900 | EFOY PRO 1800 | EFOY PRO 2800 |
|---|---|---|---|
| Nominal voltage | Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V | ||
| Acceptable battery types | Lead: 2 V cells: 6S (12 V) und 12S (24 V) LiFePO4: 3.2 V cells: 4S (12.8 V) und 8S (25.6 V) | ||
| Consumption4 | 0.91 / kWh | ||
| Connectable cartridges | 1 (up to 8 with EFOY Fuel Manager) | ||
| Length fuel cartridge connector | 75 cm / 29.5 in | ||
| Weight | 6.5 kg | 7.2 kg | 7.8 kg |
| Dimensions (L × W × H) | 448 x 198 x 275mm | ||
| User interface | Push button and LED optional 4,3” TFT Display optional Bluetooth adapter – EFOY App optional Ethernet connection to EFOY Cloud | ||
| Data interface | RJ-12 socket (CAN & RS232) for the use of accessories RJ-45 socket (Ethernet) | ||
| Communication protocol | MODBUS TCP; clear text protocol (SIO commands) Secured MQTT protocol to EFOY Cloud | ||
| Electrical interface | 4-pin Plug for EFOY charging cablePower: Positive (+) and negative (-) terminals: 4 mm² (AWG 12)Sense: Positive (+) and negative (-) terminals: 0.75 mm² (AWG 20) | ||
| Electrical interface for EFOY accessory | Positive (+) and negative (-) terminals: min 0.75 mm² (AWG 20) / max 2.5 mm² (AWG 14) Available voltage: battery voltage / Max. current: 2 A (external fuse needed | ||
| Noise level5 at 1 m | < 45 dB (A) | < 48 dB (A) | < 50 dB (A) |
| Minimal installation space (L x D x H) | EFOY Fuel Cell only: 510 x 320 x 290 mm | ||
| Inclination along the roll axis | permanent: max. 35° | ||
| Inclination along the lateral axis | permanent: max. 35° | ||
| Operating temperature | -20 °C to +50 °C / -4 °F to +122 °F | ||
| Start-up temperature | +3 °C to +50 °C / +37 °F to +104 °F | ||
| Storage temperature | +1 °C to +50 °C / +34 °F to +122 °F | ||
| International Protection (IP-Class) | IP 21 | ||
| Altitude | From approx. 2000 m above sea level there is a reduction in performance possible | ||
| Warranty | 24 months within 3.000 operating hours | ||
1 All performance data apply to the connection of the charging cable to the EFOY.
2 The output power varies by ± 10% and decreases with the operating hours, depending on the installation situation and the operating conditions.
3 Operation still possible after 3000 h, no guaranteed power output.
4 Effective consumption depends on operating conditions and hours.
5 Different noises may occur due to different components.
6 The output power may be reduced at temperatures above +35 °C / 95 °F (EFOY) and +42 °C / 108 °F (EFOY Pro). At temperatures below 0 ° C, charging lithium batteries (LiFePO4) may not always be possible. Follow the instructions from the battery manufacturer.
7 Warranty conditions: “Warranty_EFOY 80_150_EFOY_Pro 900_1800_2800” apply
| FUEL CELLS | EFOY PRO 900 | EFOY PRO 1800 | EFOY PRO 2800 | |||
|---|---|---|---|---|---|---|
| 12 V | 24 V | 12 V | 24 V | 12 V | 24 V | |
| Max. output* | 42 W | 42 W | 82 W | 82 W | 125 W | 125 W |
| Output Power2 within 3.000 hours | 34 W | 32 W | 68 W | 65 W | 105 W | 100 W |
| Output Power2 within 6.000 hours | 28 W | 27 W | 56 W | 53 W | 87 W | 83 W |
| Max. Charging current @ 10.5 V | 4.0 A | - | 7.8 A | - | 11.9 A | - |
| Max. Charging current @ 21.0 V | - | 2.0 A | - | 3.9 A | - | 6.0 A |
| Recommended minimal battery capacity lead batteries | 40 Ah | 20 Ah | 60 Ah | 30 Ah | 80 Ah | 40 Ah |
| Maximum adjustable battery capacity lead batteries | 800 Ah | 400 Ah | - | - | - | - |
| Recommended minimal battery capacity LiFePO4 batteries | 20 Ah | 10 Ah | 30 Ah | 15 Ah | 40 Ah | 20 Ah |
| Maximum adjustable battery capacity LiFePO4 batteries | 600 Ah | 300 Ah | - | - | - | - |
| Quiescent consumption | 0.5 W | 0.6 W | - | - | - | - |
| FUEL CARTRIDGES | M10 | M28* | MT60 |
|---|---|---|---|
| Volume |
10 litres |
28 litres |
60 litres |
| Weight |
8.4 kg |
23.4 kg |
55 kg |
| Nominal Capactity |
11.1 kWh |
31.1 kWh |
66.7 kWh |
| Autonomy @ 50W |
222 h |
622 h |
1320 h |
| Orientation |
Only in upright postion |
In upright position and on the side, with valve upside |
Only in upright position |
| Dimensions |
230 x 193 x 318 mm |
370 x 285 x 395 mm With M28 Adapter: 370 x 285 x 425 mm |
340 x 390 x 670 mm |
*M28 adapter required
Find the Right Model
| Model Number | Nom. Voltage(s) (Vdc) | Max Output Current (A) | Max Output Power (W) | ||
|---|---|---|---|---|---|
|
EFOY PRO 900 | Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V | 4.0A/ 2.0A | 42W | |
|
|
EFOY PRO 1800 | Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V | 7.8A/ 3.9A | 82W | |
|
|
EFOY PRO 2800 | Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V | 11.9A/ 6A | 125W |
