Enatel Energy EM4X Energy Manager
The Enatel EM4x is a smart, highly adaptable energy manager designed to monitor, control, and optimise DC power systems and hybrid site infrastructure. Supporting both Enatel and third-party devices, it offers seamless site integration through open Modbus and SNMP protocols, consolidating alarms, power system data, and energy inputs into a single, unified interface.
Read More
Features
- Supports Mixed Energy Inputs: Enables unified management of rectifiers, DC/DC converters, solar, wind, batteries, and inverters.
- Multi-Protocol Integration: Supports Modbus (RTU/TCP), SNMP V2c/V3, and HTTPS for seamless communication with a wide range of site equipment.
- Cybersecurity Compliant: Designed to IEC 62443-4 SL1 standards, meeting modern network protection requirements.
- Remote & Local Access: Embedded web interface and web-over-USB enable site configuration and monitoring without additional software.
- Advanced Site Management Tools: Includes 3-phase balancing, AC energy metering, lithium battery control, and grid tariff optimisation.
- Customisable Logic Engine: Lua scripting allows deep customisation of behaviour and response logic for site-specific needs.
Specifications
Downloads
| ELECTRICAL & ENVIRONEMNTAL | |
|---|---|
| Supply Voltage Range | 18...80VDC (supports 24VDC, 48Vdc, and 60Vdc systems) |
| Operating Temperature |
–20°C to +70°C |
| Storage Temperature | –25°C to +80°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude | <3500m |
| I/O & CONTROL | |
|---|---|
| Display / Interface |
Touchscreen or LCD with navigation keys (model dependent)
|
| Status Indicators | Red (Urgent), Orange (Non-Urgent), Green (OK) |
| Alarm Buzzer | Yes, user-configurable and can be silenced |
| Web UI Access | Ethernet or Micro-USB |
| User Access Levels | 3 x Levels (enaguest, enabasic, enaadvanced) |
| Network Ports | Ethernet (10/100Base-TX), Micro-USB |
| Supported Protocols | SNMP V2/V3, Modbus TCP/RTU, HTTP/HTTPS |
| General Purpose Inputs (GPIP) | 6 (expandable to 10), digital or analog (0–70V) |
| Relay Outputs | 6 voltage-free, user-configurable (NO/NC) |
| Current Measurement Inputs | 2 x ±55mV shunt inputs |
| Temperature Sensors | 2 inputs (ambient and battery) |
| LVD Control Outputs | 2 x LVD outputs, magnetically latched or coil contactors (3A FET) |
| CAN Bus Expansion | Supports up to 5 I/O expansion boards |
| SBI Bus Support | Connects rectifiers, converters, AC meters, BMS, I/O, fans |
| Third-Party Device Integration | Modbus-enabled lithium BMS and inverters supported |
| Custom Logic Control | Lua scripting engine for advanced logic and automation |
| AC Metering | Single/three-phase AC power metering and load balancing |
| Solar Integration | MPPT, inverter interface, solar priority via Modbus |
| Generator Control (Synergi) | Synergi integration with runtime limits, curfews, auto start/stop |
| Battery Management | Supports lithium BMS, battery LVD, dual bank control |
| Tariff-Based Charging | Supports time-of-use scheduling, peak shaving, charging control |
| ELECTRICAL & ENVIRONEMNTAL | |
|---|---|
| Supply Voltage Range | 18...80VDC (supports 24VDC, 48Vdc, and 60Vdc systems) |
| Operating Temperature |
–20°C to +70°C |
| Storage Temperature | –25°C to +80°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude | <3500m |
| I/O & CONTROL | |
|---|---|
| Display / Interface |
Touchscreen or LCD with navigation keys (model dependent)
|
| Status Indicators | Red (Urgent), Orange (Non-Urgent), Green (OK) |
| Alarm Buzzer | Yes, user-configurable and can be silenced |
| Web UI Access | Ethernet or Micro-USB |
| User Access Levels | 3 x Levels (enaguest, enabasic, enaadvanced) |
| Network Ports | Ethernet (10/100Base-TX), Micro-USB |
| Supported Protocols | SNMP V2/V3, Modbus TCP/RTU, HTTP/HTTPS |
| General Purpose Inputs (GPIP) | 6 (expandable to 10), digital or analog (0–70V) |
| Relay Outputs | 6 voltage-free, user-configurable (NO/NC) |
| Current Measurement Inputs | 2 x ±55mV shunt inputs |
| Temperature Sensors | 2 inputs (ambient and battery) |
| LVD Control Outputs | 2 x LVD outputs, magnetically latched or coil contactors (3A FET) |
| CAN Bus Expansion | Supports up to 5 I/O expansion boards |
| SBI Bus Support | Connects rectifiers, converters, AC meters, BMS, I/O, fans |
| Third-Party Device Integration | Modbus-enabled lithium BMS and inverters supported |
| Custom Logic Control | Lua scripting engine for advanced logic and automation |
| AC Metering | Single/three-phase AC power metering and load balancing |
| Solar Integration | MPPT, inverter interface, solar priority via Modbus |
| Generator Control (Synergi) | Synergi integration with runtime limits, curfews, auto start/stop |
| Battery Management | Supports lithium BMS, battery LVD, dual bank control |
| Tariff-Based Charging | Supports time-of-use scheduling, peak shaving, charging control |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|

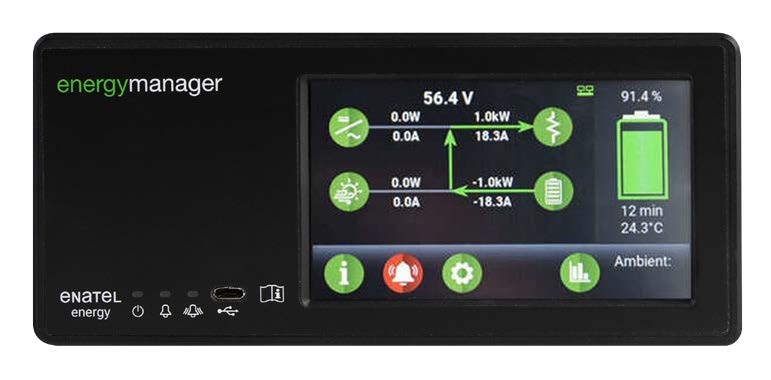

EM4X01 - Large Display (3U, 4.25" touchscreen) | ||||
|

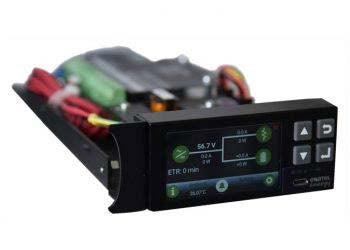

EM4X02 - Tray Display (1U, 2.5" LCD + keypad) |
