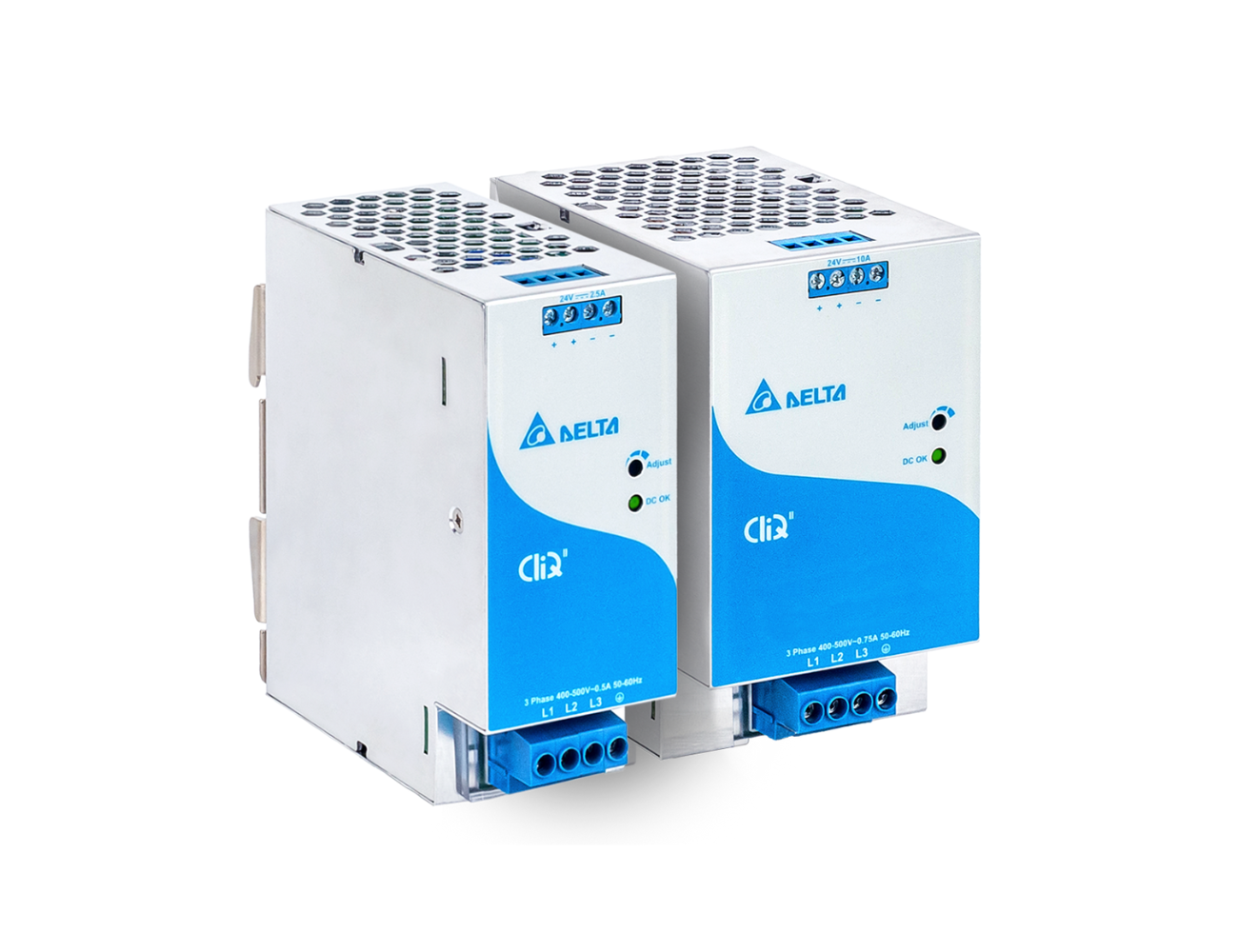

Delta Electronics CliQ II DRP 24V 3PH SERIES AC/DC Power Supply
The DRP 24V 3PH series by Delta Electronics offers a high-performance AC/DC power supply ranging from 60W to 960W for DIN Rail applications. This series features universal AC input and a rugged, corrosion-resistant aluminum chassis. Its design is ideal for harsh industrial environments, with a conformal coating on the PCB for additional protection. The power supply ensures efficient operation with a Power Boost of 150% for critical applications and operates over a wide temperature range.
Features
- Universal AC input voltage: 3 x 320Vac – 600Vac (3-Phase) or 2 x 360Vac – 600Vac (2-Phase)
- Power will not de-rate for the entire input voltage range
- Power Boost of 150% for 5 seconds
- Full corrosion resistant aluminium chassis
- Conformal coating on PCBA to protect against chemical and dust pollutants

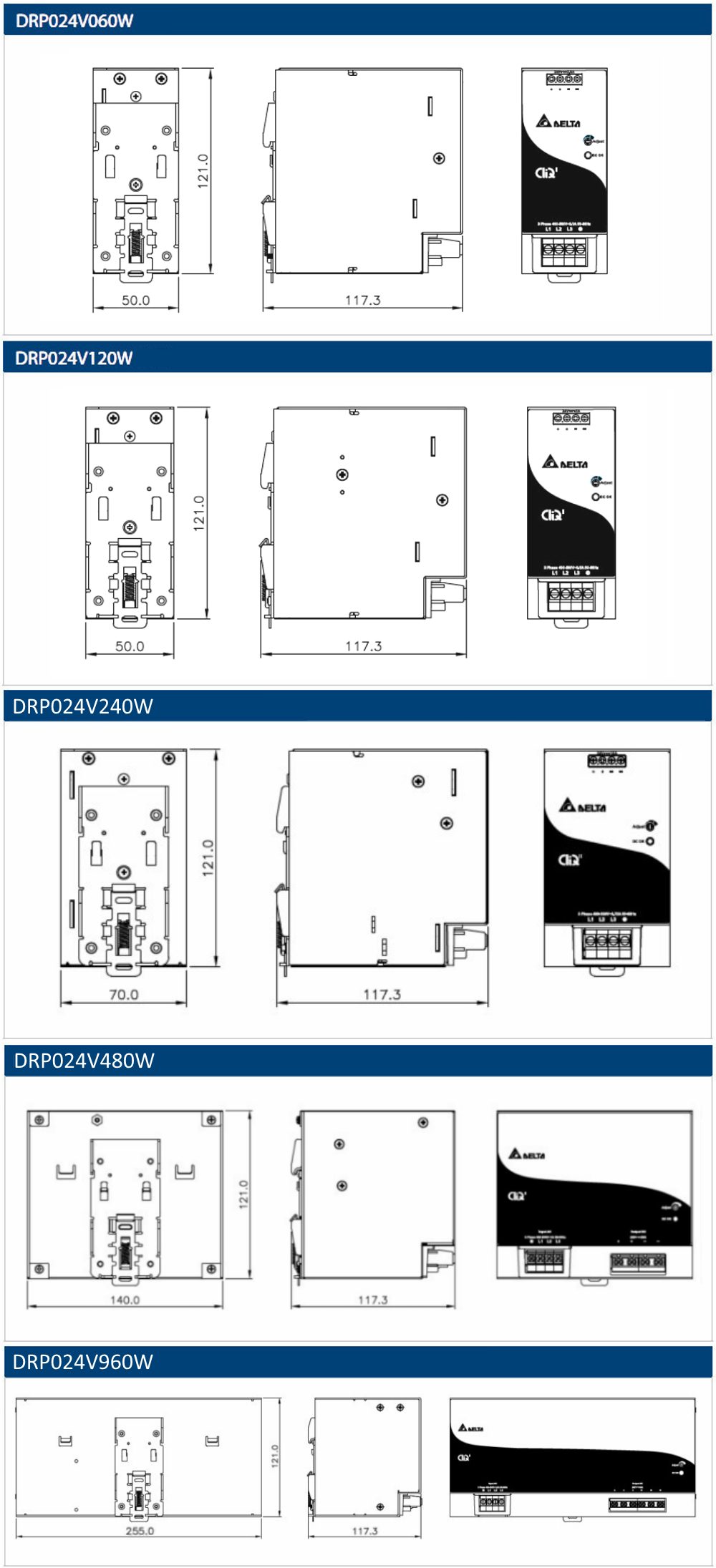

Technical Illustrations
Downloads
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DRP024V060W3BN | 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) | 24Vdc | 2.5A | |
|
|
DRP024V120W3BN | 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) | 24Vdc | 5A | |
|
|
DRP024V240W3BN | 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) | 24Vdc | 10A | |
|
|
DRP024V480W3BN | 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) | 24Vdc | 20A | |
|
|
DRP024V960W3BN | 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) | 24Vdc | 40A |
