DRC SERIES DRC Series - Delta AC/DC DIN Rail

Features
  • 10W - 100W
  • DIN rail mountable
  • Protection Class II
  • Double Isolation (No earth connection required)
  • Universal AC input voltage and full power up to 55°C
  • Efficiency > 89.0% 230VAC
  • NEC Class 2/Limited Power Source (LPS) certified
  • Overvoltage/Overcurrent/Over Temperature Protections
  • International safety approvals to ITE and Industrial standard
Specification Sheet Make a Sales Enquiry

DRC Series - Delta AC/DC DIN Rail

Product Overview

Delta Series  AC/DC DIN Rail

The DRC Series is part of the Chrome DIN Rail Power Supply series, which is designed for use in compact cabinets for home automations and the food and beverage industry. Delta’s Chrome DIN Rail Power Supply series offers double isolated input. This means that no Earth connection is required thus resulting in low leakage current. This product provides a universal input voltage range of 90-264Vac, and a wide temperature range of -25°C to 71°C. The Chrome series is certified to safety standard according to IEC/EN/UL 60950-1 Information Technology Equipment (ITE) and UL 508 Industrial Control Equipment (ICE). The series is also fully compliant with RoHS Directive 2011/65/EU for environmental protection. NEC Class 2 and Limited Power Source (LPS) approvals are available for this product

Specifications

OUTPUT
Output Voltage 5V, 12V, 24V
Voltage Range

5Vdc, 4.75V - 5.25Vdc

12Vdc, 11.5V - 14.5Vdc

24Vdc, 20V - 24.8Vdc
Output Current See Selection Table
Output Power 10W, 30W, 60W, 100W
Line Regulation < 1% typ. (@ 90-264 Vac,100% load)
Load Regulation < 2% typ. (@ 90-264 Vac,100% load)
PARD (20MHz) < 150mVpp
Rise Time < 100ms @ nominal input (100% load)
Start-up Time < 3,000ms @ nominal input (100% load)
Hold-up Time >30ms @ 230Vac (100% load)

Dynamic Response

 ± 5% @ 10 - 100% load
Start-up  3,000μF Max with Capacitive Loads
INPUT
Input Voltage 90-264Vac
Input Frequency 47-63Hz
Efficiency  > 82% @ 230Vac at 100% load
Input Current

DRC 10W: < 0.2A @230Vac

DRC 30W: < 0.60A @230Vac

DRC 60W: < 0.80A @230Vac

DRC 100W: < 1.0A @ 230Vac
Leakage Current < 0.25mA @ 240Vac
PROTECTIONS
Overvoltage 17.4V & 34.8V+10% SELV Ouput,Latch-off Mode
Overload/Overcurrent > 130% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature  > 75C Surrounding Air Temperature @ 100% load, Latch-off Mode
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Degree of Protection IP20
Protection against Shock Class 1 with Primary Earth connection
Galvanic Isolation 3.0KVac
MTBF > 500,000 hrs as per Telcordia SR-332
MECHANICAL
Case Cover Plastic
Dimensions / Weight

DRC 10W: 91 x 18 x 55.6mm, 0.065kg

DRC 30W: 91 x 53 x 55.6mm, 0.14kg

DRC 60W: 91 x 71 x 55.6mm, 0.24kg

DRC 100W: 91 x 89.9 x 55.6mm, 0.35kg
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 2 Pins Rated 300V/25A  (DRC10W 16A)
Output Terminal 4 Pins Rated 300V/25A (DRC10W 16A)
Input / Output Wire

DRC 10W: AWG 26-12

DRC 30W: AWG 24-12

DRC 60W: AWG 26-12

DRC 100W: AWG 22-12, AWG 24-12
Mounting Rail TS35 DIN Rail in accordance with EN 60715
STANDARDS
C-Tick AS/NZS CISPR11 Group 1 Class A.
Safety TUV Bauart to EN60950-1, UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC 60950 - 1, Limited Power Source (LPS)
Industrial Control UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Materials and Parts RoHS Directive 2011/65/EU Compliant
EMC CISPR 22, EN55022, FCC Title 47: Class A* IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-12

Selection Table

MODEL NUMBER

Output

Voltage

Output

Current

Output

Power


DRC-5V10W1AZ

5Vdc

 1.5A 10W
DRC-12V10W1AZ

12Vdc

 0.83A 10W
DRC-12V30W1AZ

12Vdc

 2.1A 30W
DRC-12V60W1AZ

12Vdc

 5.0A 60W
DRC-24V10W1AZ

24Vdc

 0.42A 10W
DRC-24V30W1AZ

24Vdc

 1.25A 30W
DRC-24V60W1AZ

24Vdc

 2.5A 60W
DRC-24V100W1AZ

24Vdc

 3.8A 100W

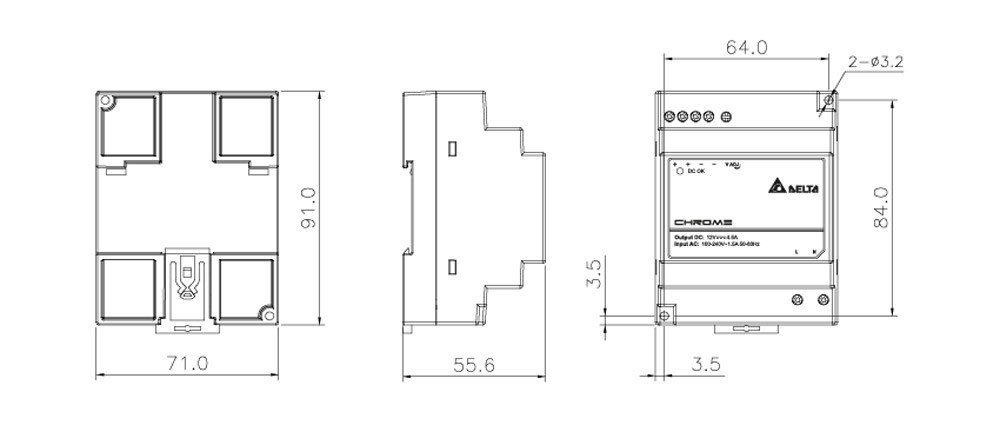

Technical Illustration

  • 10W Models 10W Models
  • 30W Models 30W Models
  • 60W Models 60W Models
  • 100W Models 100W Models
